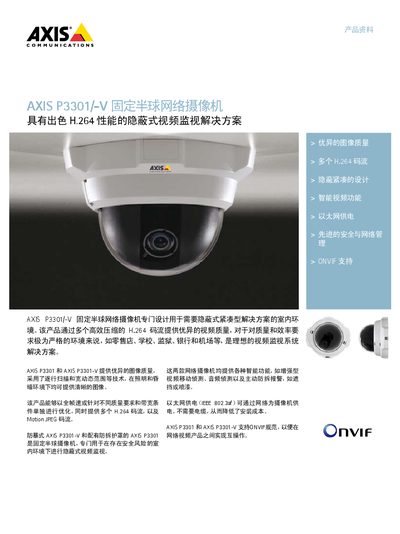

The Axis P3301 and P3301-V are fixed‑hemisphere network cameras designed for hidden, compact indoor surveillance in environments such as retail stores, schools, prisons, banks and airports. They deliver high‑quality H.264 video streams and support multiple codecs and smart functions like motion detection, audio detection and tamper alarms.
The manual lists technical specifications, power options (PoE IEEE 802.3af), lens details, image sensor type, video and audio compression formats, dimensions, weight, certifications and included accessories. It also describes configuration of ONVIF interoperability and security features such as IP filtering and HTTPS encryption. This manual is written in Chinese.
| Image sensor | Progressive scan RGBVGA CMOS |
|---|---|
| Lens | 2.8‑10 mm, F1.3, DC aperture |
| Horizontal field of view | 23°‑72° |
| Minimum illumination | 1 lux (F1.3) |
| Video compression | H.264, Motion JPEG |
| Resolution | 160×120 to 640×480 |
| Audio compression | AAC LC 8 kHz 32 kbps |
| Power | 49‑5.1 VDC, max 4 W, PoE IEEE 802.3af Class 2 |
| Dimensions | 94 mm × 144 mm |
It can be powered via Ethernet (IEEE 802.3af PoE) with a 49‑5.1 VDC supply delivering up to 4 W.
Yes, the Axis P3301 and P3301‑V support the ONVIF specification for interoperability.
The camera provides both H.264 and Motion JPEG video streams.
