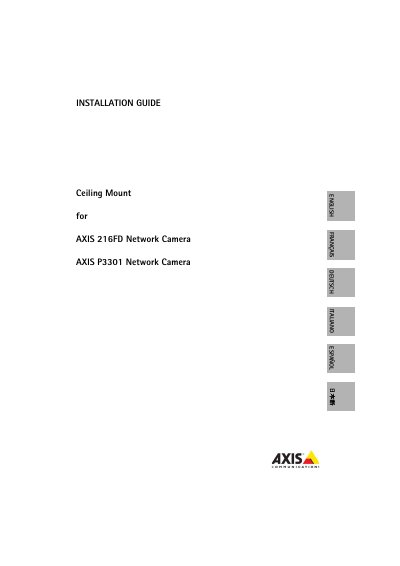

This document contains instructions for installing the Drop Ceiling Mount for the AXIS 216FD and AXIS P3301 Network Cameras.
The guide provides step‑by‑step instructions for installing the drop ceiling mount that supports Axis 216FD and P3301 network cameras. It includes a list of package contents, safety recommendations, and detailed mounting procedures.
Installation steps cover removing the ceiling tile, marking and cutting the required 154‑160 mm hole, securing the outer and inner brackets, routing cables and safety wire, and attaching the plastic dome cover. References to the cameras' own user and installation manuals are included for network setup and final adjustments.
| Total weight (camera plus mount) | 0.82 kg (1.8 lb) |
|---|---|
| Supported ceiling thickness | 9‑60 mm (0.35‑2.4 in) |
| Required ceiling hole diameter | 154‑160 mm (6.1‑6.3 in) |
The combined weight is 0.82 kg (1.8 lb).
The mount can be installed in ceilings 9 mm to 60 mm thick (0.35‑2.4 in).
A hole with a diameter of 154 mm to 160 mm (6.1‑6.3 in) is needed.
