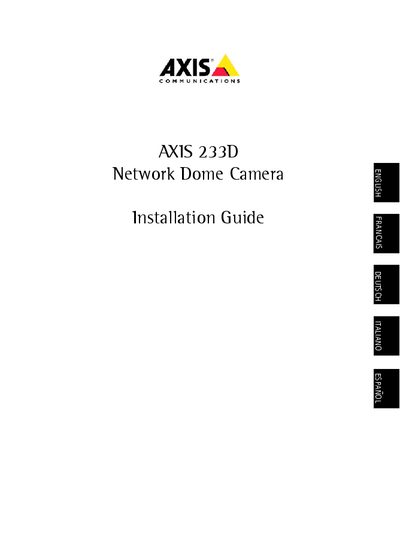

This manual provides instructions for installing the AXIS 233D Network Dome Camera on your network.
This guide provides step‑by‑step instructions for installing the Axis 233D network dome camera on a network. It lists the package contents, required tools, and safety notes before beginning the installation.
The document details hardware installation for both hard‑ceiling and drop‑ceiling mounts, shows how to attach the dome bubble, safety wire, and decorative ring, and explains how to assign an IP address and connect power and network cables.
| Dimensions (HxWxD) | 209 x 170 x 170 mm |
|---|---|
| Weight | 2.5 kg |
The camera can be installed using a hard‑ceiling mount with recessed screws or a drop‑ceiling mount with M3 screws, each with its own bracket and decorative ring.
After completing the hardware installation, assign an IP address as described on page 10 of the guide.
The camera measures 209 mm × 170 mm × 170 mm and weighs 2.5 kg (excluding the power supply).
