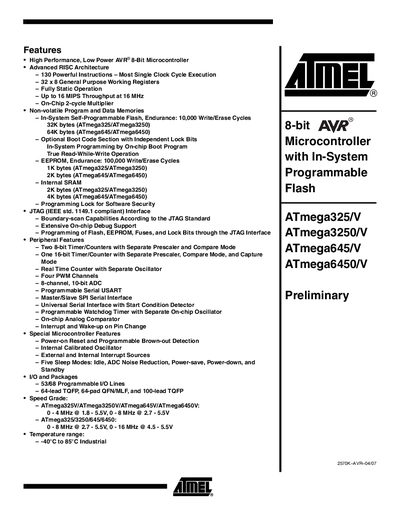

ATMEL -8-bit Microcontroller with In-System Programmable Flash ATmega325/V ATmega3250/V ATmega645/V ATmega6450/V Preliminary handbook
The ATmega325, ATmega3250, ATmega645 and ATmega6450 are low‑power CMOS 8‑bit microcontrollers based on Atmel's enhanced AVR RISC architecture. They provide high‑speed single‑cycle instruction execution and a range of on‑chip peripherals suitable for embedded control applications.
Key features include up to 64 KB of In‑System Programmable Flash, up to 4 KB SRAM, multiple 8‑bit I/O ports, a 10‑bit ADC, JTAG interface, and several power‑saving modes. The devices operate from 1.8 V to 5.5 V and are rated for an industrial temperature range of –40 °C to 85 °C.
Atmel ATMEGA3250 specifications
| EEPROM | 1 KB (ATmega325/ATmega3250), 2 KB (ATmega645/ATmega6450) |
|---|---|
| Operating voltage range | 1.8 V – 5.5 V |
| Temperature range | -40 °C to 85 °C (Industrial) |
| Active‑mode current (1 MHz, 1.8 V) | 350 pA |
| Power‑down current (1.8 V) | 100 nA |
All Atmel ATMEGA3250 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the flash memory capacity of the ATmega325?
The ATmega325 provides 32 KB of In‑System Programmable Flash memory.
What voltage range can the ATmega6450 operate in?
It operates from 1.8 V up to 5.5 V.
What is the maximum operating frequency and voltage for the V‑rated versions?
The V‑rated devices run from 0 to 4 MHz at 1.8 V to 5.5 V.
From: Atmel ATmega325/ATmega3250/ATmega645/ATmega6450 Preliminary Summary Manual
What is the current consumption in power‑down mode?
Power‑down mode draws 100 nA at 1.8 V.
From: Atmel ATmega325/ATmega3250/ATmega645/ATmega6450 Preliminary Summary Manual
