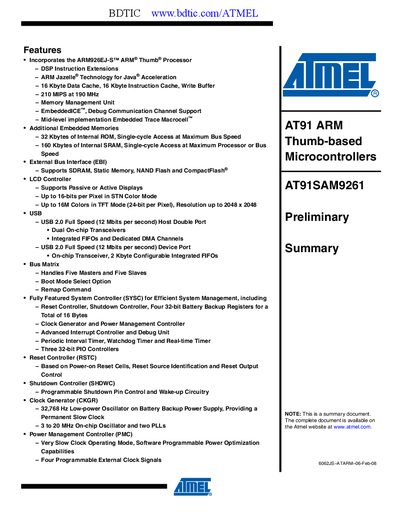

Atmel AT91SAM9261 Datasheet
The AT91SAM9261 is a system‑on‑chip built around the ARM926EJ‑S™ ARM® Thumb® processor, delivering 210 MIPS at 190 MHz. It integrates 32 KB of internal ROM, 160 KB of SRAM, 16 KB each of data and instruction cache, and a rich set of peripherals including LCD controller, USB host/device, DMA channels, and multiple serial interfaces.
The device is offered in a 217‑ball LEBGA RoHS‑compliant package and supports a wide range of power supplies (VDDCORE 1.08‑1.32 V, VDDIOP 2.7‑3.6 V, VDDIOM 1.65‑1.95 V/3.0‑3.6 V). The handbook includes a block diagram, detailed signal descriptions, pin‑out tables, memory mapping, and a revision history for engineering reference.
Atmel AT91SAM9261 specifications
| Processor Core | ARM926EJ‑S™ ARM® Thumb® |
|---|---|
| Performance | 210 MIPS at 190 MHz |
| Internal ROM | 32 KB |
| Internal SRAM | 160 KB |
| Data Cache | 16 KB |
| Instruction Cache | 16 KB |
| Package | 217‑ball LEBGA, RoHS‑compliant |
| Core Power Supply (VDDCORE) | 1.08 V to 1.32 V |
| I/O Power Supply (VDDIOP) | 2.7 V to 3.6 V |
| Memory I/O Power Supply (VDDIOM) | 1.65 V to 1.95 V and 3.0 V to 3.6 V |
| Peripheral DMA Channels | 19 |
| LCD Color Depth | Up to 16 M colors (24‑bit) |
| LCD Resolution | Up to 2048 × 2048 |
Source: Atmel AT91SAM9261 Datasheet
All Atmel AT91SAM9261 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What processor core does the AT91SAM9261 use?
It uses the ARM926EJ‑S™ ARM® Thumb® processor.
What are the core performance specifications?
The device delivers 210 MIPS at a clock speed of 190 MHz.
What processor core does the AT91SAM9261 use?
It uses an ARM926EJ‑S Thumb processor with DSP extensions and Jazelle Java acceleration.
How many peripheral DMA channels are integrated in the AT91SAM9261?
The chip includes nineteen Peripheral DMA (PDC) channels.
