Key facts
- Brand
- Atmel
- Model
- AT27C080
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-05
Start here

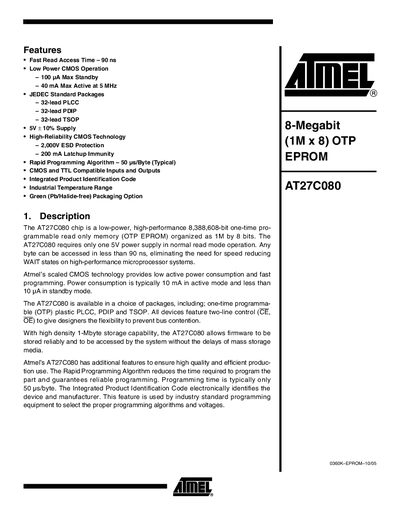

Atmel AT27C080 8-Megabit OTP EPROM Datasheet
Datasheet 14 pages · 291 KB · EN
The document describes the Atmel AT27C080, a low-power, high-performance 8-Megabit (1M x 8) OTP EPROM. It features fast read access times of 90 ns and operates with a single 5V power supply in normal read mode.
Read onlineAtmel AT27C080 specifications
| Memory Capacity | 8,388,608-bit (1M x 8) |
|---|---|
| Read Access Time | 90 ns |
| Supply Voltage (Read) | 5V + 10% |
| Operating Temperature | -40°C to +85°C |
| Standby Current | 100 nA Max |
All Atmel AT27C080 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum standby current?
The maximum standby current is 100 nA.
Is this device compatible with TTL inputs and outputs?
Yes, the AT27C080 features CMOS and TTL compatible inputs and outputs.
What is the read access time of the AT27C080?
The AT27C080 provides a fast read access time of 90 ns.
What supply voltage does the AT27C080 require?
It operates from a 5 V supply with a tolerance of ±10 %.
