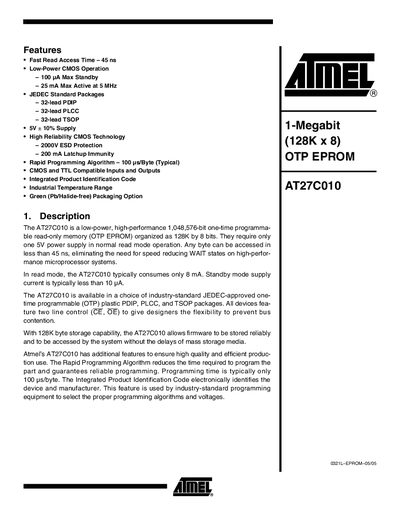

Atmel AT27C010 OTP EPROM Datasheet
The AT27C010 is a 1‑Megabit (128 K × 8) one‑time programmable EPROM offering fast 45 ns read access and low power consumption (8 mA in read, <10 µA standby). It operates from a single 5 V supply and is available in 32‑lead PDIP, PLCC, and TSOP packages.
The device includes a rapid programming algorithm (≈100 µs/Byte), integrated product identification code, and robust protection features such as 2000 V ESD and 200 mA latchup immunity. Detailed electrical specifications, pin configurations, and programming waveforms are provided for system designers.
Atmel AT27C010 specifications
| Read Access Time | 45 ns |
|---|---|
| Supply Voltage | 5 V ±10 % |
| Operating Temperature Range | -40 °C to +85 °C |
| Memory Size | 1 Megabit (128 K × 8) |
| Package Options | 32‑lead PDIP, PLCC, TSOP |
| ESD Protection | 2000 V |
| Latchup Immunity | 200 mA |
| Input High Voltage | 2.0 V |
All Atmel AT27C010 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the read access time of the AT27C010?
The AT27C010 provides a read access time of 45 ns.
What supply voltage does the AT27C010 require?
It operates from a 5 V supply with a tolerance of ±10 %.
What is the read access time of the AT27C010?
The device provides a fast read access time of 45 ns.
From: Atmel AT27C010 Datasheet
What supply voltage does the AT27C010 require?
It operates from a 5 V supply with a ±10 % tolerance.
From: Atmel AT27C010 Datasheet
