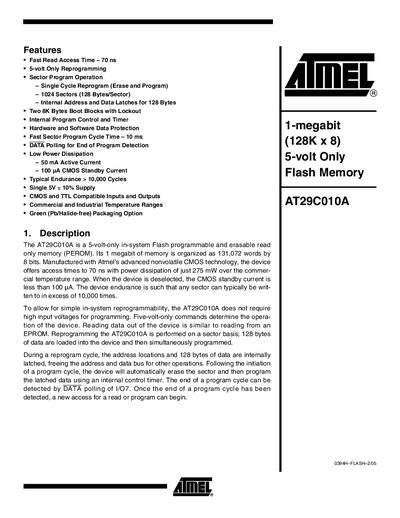

Atmel AT29C010A Datasheet
The AT29C010A is a 5‑volt‑only, in‑system programmable flash memory offering 1 Mbit (128 K × 8) organized into 1024 sectors of 128 bytes each. It includes two 8 KB boot blocks with optional lockout, low power consumption, and data‑polling for program‑cycle detection.
The document provides pin configurations, timing specifications, operating modes, protection features, absolute maximum ratings, and package dimensions for designers integrating the device into commercial or industrial applications.
Atmel AT29C010A specifications
| Read Access Time | 70 ns |
|---|---|
| Supply Voltage | 5 V ±10 % |
| Active Current | 50 mA |
| Standby Current | 100 pA |
| Endurance | > 10,000 cycles |
| Number of Sectors | 1024 (128 B each) |
| Boot Block Size | 2 × 8 KB |
Source: Atmel AT29C010A Datasheet
All Atmel AT29C010A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What voltage is required to program the AT29C010A?
The device uses a single 5 V supply with a ±10 % tolerance for programming.
What is the standby current of the device?
The standby (CMOS) current is 100 pA.
What voltage supply does the AT29C010A require?
It operates from a single 5 V supply with a tolerance of ±10 %.
How many sectors are in the AT29C010A and how large is each sector?
The device contains 1024 sectors, each 128 bytes in size.
