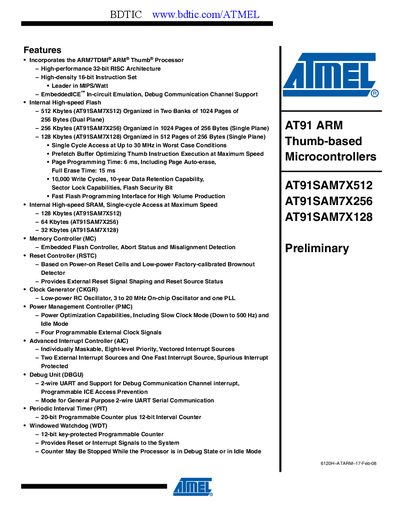

Atmel AT91SAM7X512 Handbook
The AT91SAM7X512 is a 32‑bit ARM7TDMI microcontroller featuring up to 512 KB of flash memory, 128 KB of SRAM, and a rich set of peripherals including Ethernet, CAN, USB, and ADC. It is designed for embedded control applications that require high performance and low power consumption.
The device is offered in 100‑lead LQFP and 100‑ball TFBGA packages and includes integrated power management, reset controller, and debug interfaces. Detailed electrical characteristics, pin‑out tables, and block diagrams are provided throughout the handbook to aid hardware and firmware development.
Atmel AT91SAM7X512 specifications
| Flash memory | 512 Kbytes (dual plane) |
|---|---|
| SRAM | 128 Kbytes |
| CPU core | ARM7TDMI® Thumb® processor |
| Maximum clock frequency | 55 MHz at 1.65 V |
| Integrated USB | USB 2.0 Full Speed (12 Mbit/s) device port |
Source: Atmel AT91SAM7X512 Datasheet
All Atmel AT91SAM7X512 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the flash memory size of the AT91SAM7X512?
The AT91SAM7X512 includes 512 Kbytes of dual‑plane flash memory.
Which communication peripherals are integrated in the AT91SAM7X512?
It integrates an Ethernet MAC 10/100, a CAN controller, a USB 2.0 Full‑Speed device port, and an 8‑channel 10‑bit ADC.
What is the flash memory capacity of the AT91SAM7X512?
The AT91SAM7X512 contains 512 KB of flash memory.
What package types are available for the AT91SAM7X512?
The microcontroller is offered in 100‑lead LQFP and 100‑ball TFBGA packages.
