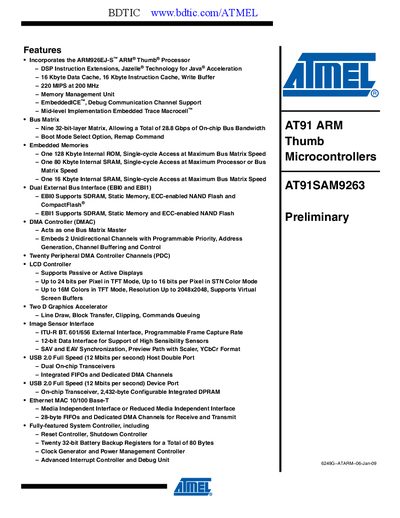

Atmel AT91SAM9263 Handbook
The AT91SAM9263 is a 32‑bit microcontroller based on the ARM926EJ‑S™ ARM® Thumb® processor, featuring up to 220 MIPS at 200 MHz, a 9‑layer bus matrix with 28.8 Gbps bandwidth, dual external memory interfaces, LCD and graphics controllers, USB 2.0, Ethernet MAC, and a rich set of peripherals.
This handbook covers the device’s features, block diagrams, pin‑signal descriptions, electrical and mechanical characteristics, power‑supply requirements, programming interface, USB host/device ports, LCD controller, graphics controller, image sensor interface, errata, and ordering information.
Atmel AT91SAM9263 specifications
| Processor Core | ARM926EJ-S Thumb |
|---|---|
| Maximum Clock Speed | 200 MHz |
| Internal ROM | 128 KB |
| Bus Matrix Bandwidth | 28.8 Gbps |
| Core Power Supply Voltage | 1.08 V – 1.32 V |
| I/O Power Supply Voltage | 1.65 V – 3.6 V |
Source: Atmel AT91SAM9263 Datasheet
All Atmel AT91SAM9263 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Atmel AT91SAM9263 Datasheet 1106 p
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Atmel AT91SAM9263 Handbook 1106 p
Questions answered in these manuals
What processor core does the AT91SAM9263 use?
It incorporates the ARM926EJ‑S Thumb processor.
What is the maximum bus bandwidth of the matrix?
The nine‑layer bus matrix offers up to 28.8 Gbps of internal bandwidth.
What processor core does the AT91SAM9263 use?
It incorporates the ARM926EJ‑S™ ARM® Thumb® processor.
How many external memory bus interfaces are provided?
The device has two external bus interfaces, EBIO and EBI1.
