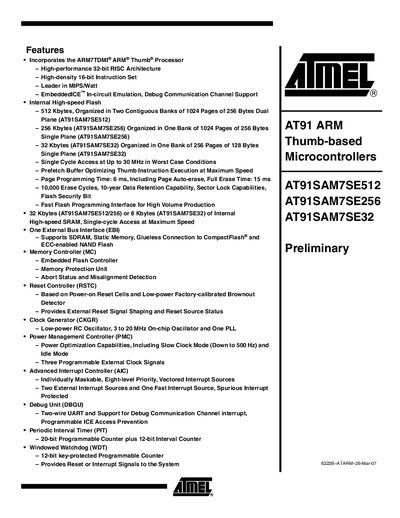

ATMEL AT91SAM7SE512 AT91SAM7SE256 AT91SAM7SE32 DATA SHEET
The AT91SAM7SE series microcontrollers integrate an ARM7TDMI® core with high‑speed Flash memory, SRAM, and a rich set of peripherals such as USB 2.0 device, External Bus Interface, USART, SPI, TWI, ADC, PWM and timers. The devices are offered in three memory configurations: 512 KB Flash/32 KB SRAM (AT91SAM7SE512), 256 KB Flash/32 KB SRAM (AT91SAM7SE256) and 32 KB Flash/8 KB SRAM (AT91SAM7SE32). They support a wide voltage range and can operate up to 55 MHz.
The datasheet includes detailed block diagrams, signal descriptions, electrical and mechanical characteristics, ordering information, and errata. Package options are 128‑lead LQFP and 144‑ball LEBGA, both RoHS‑compliant. The document is intended for hardware designers and system integrators needing precise electrical parameters and pin‑level details.
Atmel AT91SAM7SE256 specifications
| Flash size (AT91SAM7SE512) | 512 KB |
|---|---|
| Flash size (AT91SAM7SE256) | 256 KB |
| Flash size (AT91SAM7SE32) | 32 KB |
| SRAM size | 32 KB (AT91SAM7SE512/256), 8 KB (AT91SAM7SE32) |
| Maximum core frequency | Up to 55 MHz at 1.8 V |
| Core supply voltage (VDDCORE) | 1.65 V to 1.95 V |
| USB device port | USB 2.0 Full Speed (12 Mbit/s) |
| ADC | 8‑channel 10‑bit ADC |
| Package options | 128‑lead LQFP, 144‑ball LEBGA (RoHS‑compliant) |
Source: ATMEL AT91SAM7SE512 AT91SAM7SE256 AT91SAM7SE32 DATA SHEET
All Atmel AT91SAM7SE256 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the core supply?
The core supply voltage (VDDCORE) operates between 1.65 V and 1.95 V.
From: ATMEL AT91SAM7SE512 AT91SAM7SE256 AT91SAM7SE32 DATA SHEET
What package options are offered for the AT91SAM7SE devices?
They are available in a 128‑lead LQFP package or a 144‑ball LEBGA package, both RoHS‑compliant.
From: ATMEL AT91SAM7SE512 AT91SAM7SE256 AT91SAM7SE32 DATA SHEET
What is the flash memory capacity of the AT91SAM7SE256?
The AT91SAM7SE256 includes 256 KB of high‑speed flash memory.
What I/O supply voltage range does the AT91SAM7SE256 support?
The I/O lines operate from 3 V to 3.6 V.
What is the flash memory size of the AT91SAM7SE256?
The AT91SAM7SE256 contains 256 KB of high‑speed Flash memory.
How many programmable I/O lines does the AT91SAM7SE256 provide?
It provides 88 programmable I/O lines.
