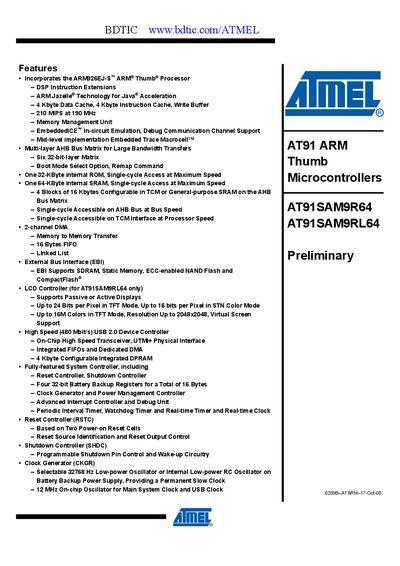

Atmel AT91SAM9RL64 User Manual
The AT91SAM9RL64 is an ARM926EJ‑S™ microcontroller featuring a 190 MHz core capable of 210 MIPS, 32 KB internal ROM, 64 KB internal SRAM, and a rich set of peripherals including USB 2.0 High‑Speed, LCD controller (RL64 only), AC’97, multiple USARTs, SPI, I²C, PWM, and a 6‑channel 10‑bit ADC with touch‑screen support. Power management includes flexible voltage domains and a backup controller.
The manual contains block diagrams, signal descriptions, register configuration guides, electrical and mechanical characteristics, as well as errata and ordering information, making it a comprehensive reference for hardware designers and firmware developers.
Atmel AT91SAM9RL64 specifications
| Processor | ARM926EJ‑S™ ARM® Thumb® |
|---|---|
| Maximum MIPS | 210 MIPS at 190 MHz |
| Internal ROM | 32 KB |
| Internal SRAM | 64 KB |
| USB Device Controller | High Speed 480 Mbit/s USB 2.0 |
| VDDCORE Voltage Range | 1.08 V to 1.32 V |
Source: Atmel AT91SAM9RL64 Datasheet
