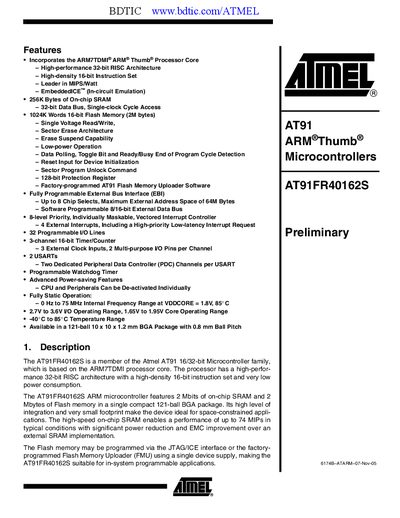

Atmel AT91FR40162S Microcontroller Handbook
This handbook describes the AT91FR40162S microcontroller, a member of Atmel's AT91 family based on the ARM7TDMI core. It details the device's high‑performance 32‑bit RISC architecture, on‑chip SRAM and Flash memory, and low‑power features.
The document includes pin configuration, signal descriptions, architectural overview, system and user peripheral information, power‑supply considerations, and mechanical data such as package dimensions and soldering profile.
Atmel AT91FR40162S specifications
| On‑chip SRAM | 256 KB |
|---|---|
| Flash memory | 2 MB (1024 K words, 16‑bit) |
| External address space | 64 MB |
| Data bus width | 32‑bit |
| Core frequency range | 0 Hz to 75 MHz |
| I/O voltage range | 2.7 V to 3.6 V (I/O), 1.65 V to 1.95 V (core) |
| Operating temperature | -40 °C to 85 °C |
| Package | 121‑ball BGA, 10 × 10 × 1.2 mm |
Source: Atmel AT91FR40162S Datasheet
