Start here

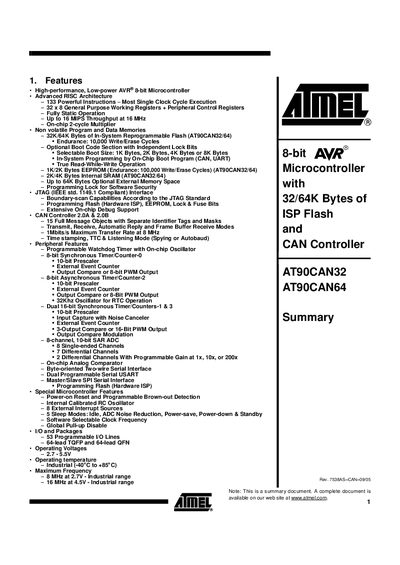

ATMEL AT90CAN32 AT90CAN64 handbook
This document provides technical specifications and features for the Atmel AT90CAN32 and AT90CAN64, which are low-power CMOS 8-bit microcontrollers based on the AVR enhanced RISC architecture. These devices offer high-performance processing with up to 16 MIPS throughput at 16 MHz and include a dedicated CAN controller compliant with standards 2.0A & 2.0B.
Read onlineAtmel AT90CAN32 specifications
| Architecture | Advanced RISC Architecture |
|---|---|
| Flash Memory (AT90CAN32) | 32K Bytes |
| Flash Memory (AT90CAN64) | 64K Bytes |
| EEPROM Memory | 1K/2K Bytes |
| Internal SRAM | 2K/4K Bytes |
| Operating Voltage | 2.7 - 5.5V |
| Maximum Frequency (Industrial) | 16 MHz at 4.5V |
| Operating Temperature | -40°C to +85°C |
| I/O Lines | 53 Programmable I/O Lines |
All Atmel AT90CAN32 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the difference between AT90CAN32 and AT90CAN64?
The only difference is the memory size; AT90CAN32 has 32K Bytes Flash while AT90CAN64 has 64K Bytes.
What are the package options for these microcontrollers?
The devices are available in 64-lead TQFP and 64-lead QFN packages.
What flash memory sizes are available for the AT90CAN32/AT90CAN64/AT90CAN128?
The AT90CAN32 has 32 KB, the AT90CAN64 has 64 KB, and the AT90CAN128 has 128 KB of In‑System Reprogrammable Flash.
From: Atmel AT90CAN32/AT90CAN64/AT90CAN128 Automotive Summary Manual
What automotive temperature grades are offered for these microcontrollers?
Three grades are provided: –40 °C to +85 °C, –40 °C to +105 °C (T1), and –40 °C to +125 °C (Z).
From: Atmel AT90CAN32/AT90CAN64/AT90CAN128 Automotive Summary Manual
