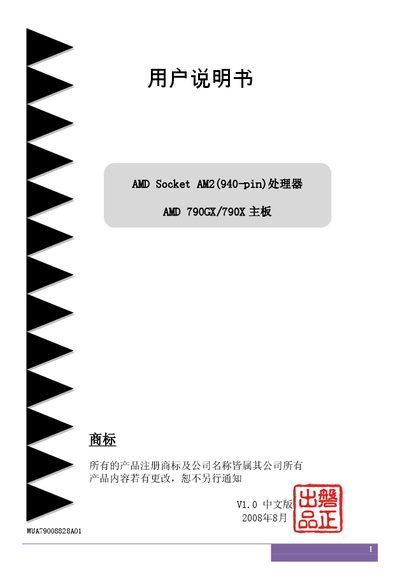

AMD Socket AM2(940-pin) CPU AMD 790GX/790X motherboard user manual
This manual provides an overview of the AMD 790GX/790X motherboard, including its AM2/AM2+ (940‑pin) CPU socket, supported chipsets, memory architecture, and integrated peripherals. It also outlines safety precautions, anti‑static handling, and warranty terms.
The document contains sections on packaging contents, motherboard layout, jumper settings, system memory, graphics, rear I/O, internal interfaces, BIOS features, and a troubleshooting FAQ, helping users install, configure, and maintain the board. This manual is written in Chinese.
AMD AM2+(940-pin) specifications
| CPU Socket | Socket AM2/AM2+ (940‑pin) |
|---|---|
| Supported CPUs | AMD Athlon‑X2, Athlon‑64, Sempron |
| Chipset | NVIDIA nF720/730 Series or nF520/560/570LT Series |
| SATA Interfaces | 6 SATA II ports (300 MB/s) with RAID 0,1,0+1,5 support |
| USB Ports | 8 × USB 2.0 (4 rear, 4 additional) |
| Network | Realtek gigabit Ethernet (optional) and 10/100 Ethernet |
Source: AMD Socket AM2/AM2+(940-pin) CPU nVidia nF720/730/520/560/570LT motherboard user manual (1)
