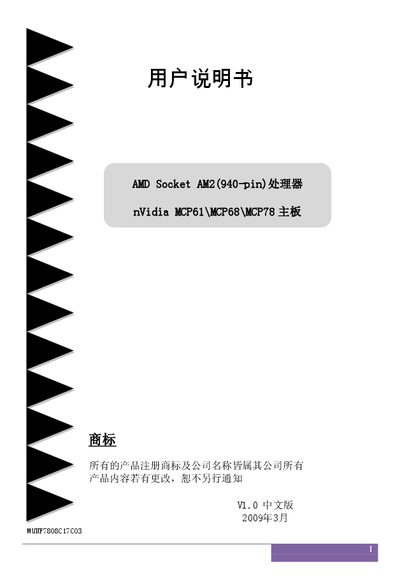

This is the user manual of the Pinnacle Ultra P6 mainboard, which includes product features, installation, common BIOS settings, drivers and applications, FAQs, BIOS refresh, etc.
This manual provides detailed information for a motherboard that uses the AMD Socket AM2 (940‑pin) platform and an NVIDIA MCP61, MCP68 or MCP78 chipset. It includes an introduction to the board, supported CPUs, memory types, expansion slots, I/O connectors, BIOS features and power‑management options.
The document also contains installation instructions, BIOS configuration guidance, driver and application notes, a troubleshooting code table, and the warranty terms (three‑month replacement and three‑year service). All safety and static‑discharge precautions are highlighted. This manual is written in Chinese.
| Supported processors | AMD Athlon‑X2, Athlon‑64, Sempron (Socket‑AM2) and AMD Phenom (Socket‑AM2+) |
|---|---|
| Chipset | NVIDIA MCP61 / MCP68 / MCP78 Series |
| USB ports | 8–10 USB 2.0 ports (4 on rear panel, additional on board) |
| Video outputs | 1 × VGA, optional DVI and HDMI |
The product is covered by a three‑month replacement guarantee and a three‑year warranty for repair or service.
