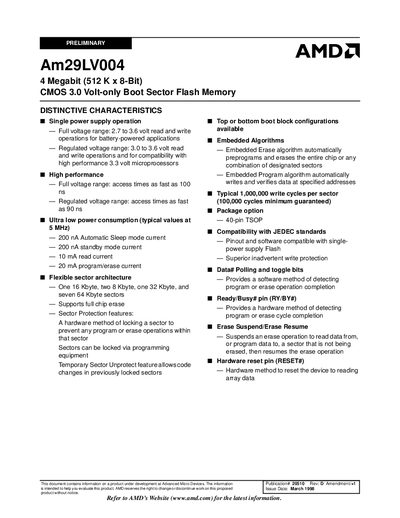

AMD Am29LV004 4 Megabit Flash Memory Datasheet
The AMD Am29LV004 is a 4 Megabit (512 K x 8-Bit) CMOS Flash memory designed for single power supply operation. It supports both full voltage range (2.7 to 3.6 V) and regulated voltage range (3.0 to 3.6 V) modes, offering access times as fast as 90 ns in the regulated range. The device is organized as 524,288 bytes with byte-wide data appearing on DQ7-DQ0.
Read onlineAMD Am29LV004 specifications
| Memory Capacity | 4 Megabit (512 K x 8-Bit) |
|---|---|
| Voltage Range (Full) | 2.7 to 3.6 volt |
| Voltage Range (Regulated) | 3.0 to 3.6 volt |
| Access Time (Regulated) | 90 ns |
| Access Time (Full Voltage) | 100 ns |
| Package Type | 40-pin TSOP |
| Write Cycles | 1,000,000 per sector |
All AMD Am29LV004 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the voltage requirement for the Am29LV004?
The device requires only a single 3.0 volt power supply for both read and write functions.
Can the Am29LV004 be programmed with a standard EPROM programmer?
Yes, a standard EPROM programmer can be used to program and erase the device.
What voltage supply does the Am29LV004B require?
It requires a single 3.0 V power supply for both read and write operations, with a full voltage range of 2.7 V to 3.6 V.
From: AMD Am29LV004B Datasheet
How many memory sectors does the device have and what are their sizes?
The device contains one 16 KB sector, two 8 KB sectors, one 32 KB sector, and seven 64 KB sectors.
From: AMD Am29LV004B Datasheet
