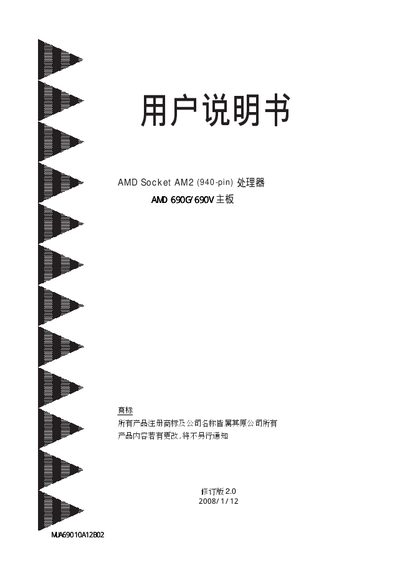

This user manual introduces the use of the Pinnacle Ultra Pinnacle Ultra AMD Socket AM2 (940-pin) motherboard, including product packaging, motherboard introduction, specifications, installation, BIOS settings, drivers and applications.
This manual provides an overview of the AMD 690G/690V motherboard, including its supported CPUs, memory configurations, and integrated peripherals. It also details the physical layout, connector locations, and safety precautions for handling the board.
The document includes step‑by‑step instructions for installing the motherboard, configuring the BIOS, and using features such as RAID, USB 2.0, and Gigabit Ethernet. Warranty terms and troubleshooting tables are provided at the end of the guide. This manual is written in Chinese.
| CPU Socket | Socket AM2 (940‑pin) |
|---|---|
| Supported CPUs | AMD Athlon‑X2, Athlon‑64, Sempron |
| Chipset | AMD 690G / 690V |
| Memory Slots | 4 × DDR2 SDRAM DIMM (1.8 V, 533/667/800 MHz, dual‑channel) |
| USB Ports | 8 × USB 2.0 (4 rear, 4 internal) |
| SATA Interfaces | 4 × SATA II (300 MB/s), RAID 0/1/0+1 |
| Integrated Graphics | ATI Radeon X1250 (690G) / X1200 (690V) |
The board supports AMD Socket AM2 processors, including Athlon‑X2, Athlon‑64, and Sempron models.
It has four DDR2 SDRAM DIMM slots that accept 1.8 V DDR2‑533, DDR2‑667, or DDR2‑800 modules in dual‑channel mode.
The motherboard provides eight USB 2.0 ports, four of which are on the rear panel.
Yes, the four SATA II ports support RAID 0, RAID 1, and RAID 0+1 configurations.
