This is a motherboard manual, including installation, common BIOS settings, drivers and applications, FAQs, and BIOS refresh

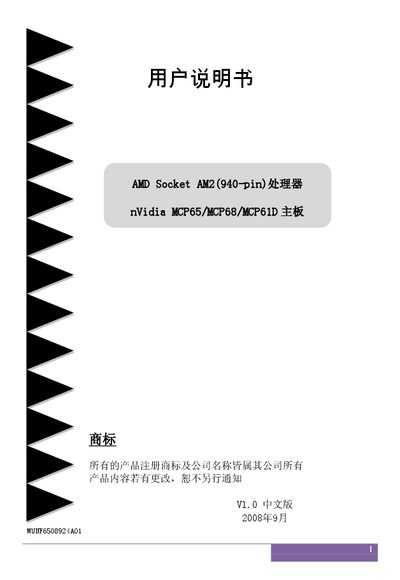

This manual provides an overview of the AMD Socket AM2 (940‑pin) motherboard that uses Nvidia MCP61D/MCP65/MCP68 series chipsets. It describes the supported AMD Athlon‑X2, Athlon‑64 and Sempron CPUs, the DDR2 memory architecture, and the various I/O and expansion interfaces.
The document includes detailed sections on hardware installation, BIOS configuration, driver installation, troubleshooting codes, and warranty information, helping users set up and maintain the board safely. This manual is written in Chinese.
| CPU Socket | AMD Socket AM2 (940‑pin) |
|---|---|
| Chipset | Nvidia MCP61D / MCP65 / MCP68 series |
| Memory Type | DDR2 SDRAM DIMM, 1.8 V, 667/800 MHz, dual‑channel |
| PCI Slots | 2 × PCI (PCI‑V2.3), 1 × PCI‑E x1, 1 × PCI‑E x16 |
| USB Ports | 8 × USB 2.0 (4 on rear panel) |
| Audio | Realtek ALC8XX/6XX codec, 6‑ or 8‑channel output |
The board supports AMD Athlon‑X2, Athlon‑64 and Sempron processors that use the Socket‑AM2 (940‑pin) interface.
It uses DDR2 SDRAM DIMM modules, 1.8 V, supporting 667 MHz and 800 MHz speeds in dual‑channel configuration.
It includes two PCI slots, one PCI‑Express x1 slot, and one PCI‑Express x16 slot.
