Key facts
- Brand
- AMD
- Model
- NFORCE3
- Category
- Motherboard
- Industry
- Computers
- Documents
- 4
- Languages
- ZH
- Last added
- 2012-04-06
Start here

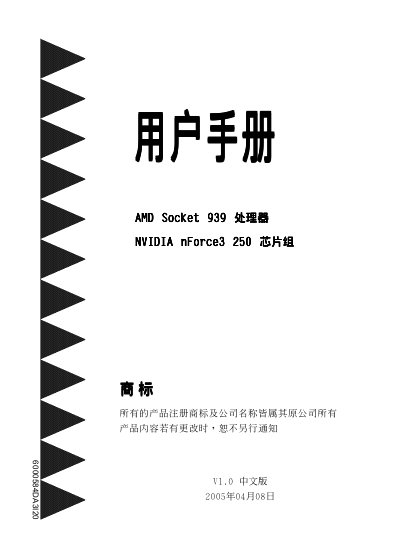

AMD nForce3 250 Socket 939 Motherboard User Manual
This manual covers the AMD Socket 939 motherboard equipped with the NVIDIA nForce3 250 chipset. It details the board’s hardware layout, supported CPUs, memory configurations, integrated peripherals such as Realtek LAN, audio codec, S‑ATA ports and expansion slots.
The guide walks users through installing the CPU, memory and expansion cards, configuring BIOS settings, enabling RAID, and installing drivers. Troubleshooting tips for BIOS orientation, memory issues and peripheral connections are also included. This manual is written in Chinese.
AMD NFORCE3 specifications
| CPU socket | Socket 939 |
|---|---|
| Chipset | NVIDIA nForce3 250 |
| Memory slots | 4 DDR slots, DDR‑266/333/400 |
| Maximum memory | 4 GB |
| BIOS | Plug & Play, ACPI v2.0 |
| LAN | Realtek RTL8201 10/100 Mbps |
| S‑ATA ports | 2 ports, up to 150 MB/s, RAID 0/1/JBOD |
| Audio codec | Realtek ALC655 AC’97, 6‑channel |
| Form factor | 30.5 × 24.5 cm, ATX |
All AMD NFORCE3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What should I do if the BIOS is installed incorrectly?
Re‑check the BIOS orientation and reinstall it according to the troubleshooting guide.
How can I access the RAID BIOS configuration?
After powering on, press the F10 key to enter the RAID BIOS setup program.
What is the maximum memory capacity?
Up to 2 GB of DDR‑266/333/400 memory can be installed.
How do I clear the CMOS?
Press the Clear CMOS button or use the Insert key as indicated in the manual.
From: AMD Socket 754 CPU NVIDIA nForce3 250 Chipsets motherboard Manual
What is the maximum memory capacity?
The motherboard can accommodate up to 3 GB of DDR memory.
From: AMD Socket 754 CPU NVIDIA nForce3 250 Chipsets motherboard Manual
Which CPUs are supported by this motherboard?
The board supports AMD Athlon 64 processors.
From: AMD Socket 754 Motherboard with NVIDIA nForce3 250Gb Chipset User Manual
