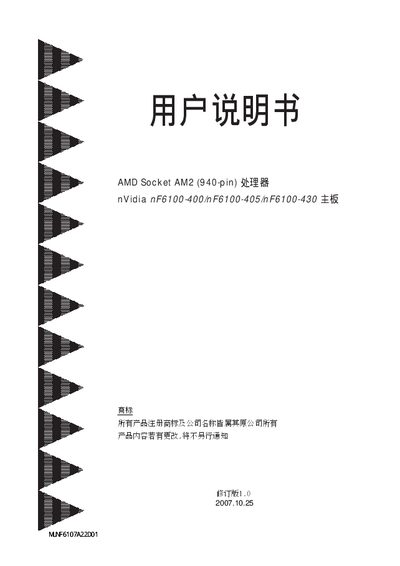

This is the product manual of a motherboard with AMD Socket AM2 (940-pin) and nVidia nF6100-400/nF6100-405/nF6100-430
The AMD motherboard supports the Socket AM2 (940‑pin) interface and uses the nVidia PCM61 (nF6100‑400/405/430) chipset. It provides DDR2 dual‑channel memory, SATAII with RAID support, USB 2.0, and integrated audio and LAN.
The manual covers packaging contents, motherboard overview, hardware specifications, BIOS configuration, system setup, safety guidelines, driver installation, and troubleshooting procedures. This manual is written in Chinese.
| CPU Socket | Socket AM2 (940‑pin) |
|---|---|
| Supported CPUs | AMD Athlon‑X2, Athlon, Sempron (Socket‑AM2) |
| Chipset | nVidia PCM61 series (nF6100‑400/405/430) |
| USB Ports | 6 × USB 2.0 (4 rear, 2 front) |
| LAN | Realtek RTL8100C, 10/100 Mbps |
It supports AMD Athlon‑X2, Athlon, and Sempron processors that use the Socket‑AM2 (940‑pin) interface.
The board provides six USB 2.0 ports, with four located on the rear panel.
