Start here

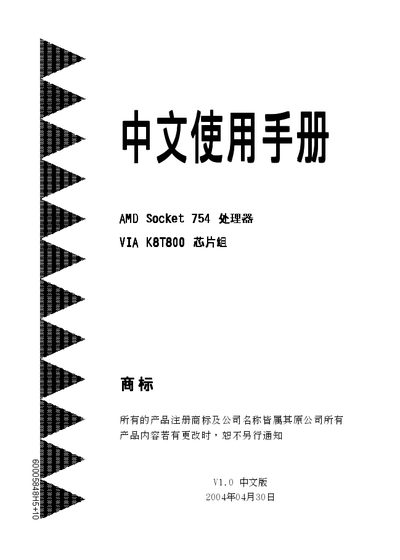

VIA K8T800 Socket 754 Chipset User Manual
This manual covers the VIA K8T800 chipset for AMD Socket 754 platforms. It includes packaging contents, detailed specifications, step‑by‑step installation procedures, BIOS configuration options, and RAID utility usage.
The document also lists the supported hardware interfaces such as AGP 8X, ATA‑133, USB 2.0, LAN PHY, SATA, and audio codec details, as well as memory limits and CPU compatibility. This manual is written in Chinese.
AMD K8T800 specifications
| Memory Type | DDR400 |
|---|---|
| CPU Socket | Socket 754 |
| Chipset | VIA K8T800 |
| LAN Interface | Gigabit Ethernet (GbE LAN) |
Source: AMD Socket A 754 CPU VIA KT800 Chipsets chinese Manual
All AMD K8T800 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I clear the CMOS if the BIOS fails?
Press the reset button or use the Insert jumper to clear the CMOS as described in the troubleshooting section.
From: AMD Socket A 754 CPU VIA KT800 Chipsets chinese Manual
What RAID functions are supported by this motherboard?
The board supports S‑ATA RAID functionality, including RAID 0, RAID 1, and JBOD modes.
From: AMD Socket A 754 CPU VIA KT800 Chipsets chinese Manual
What is the maximum memory the chipset supports?
The K8T800 chipset supports up to 3 GB of DDR memory.
Which CPUs are compatible with this chipset?
It is compatible with AMD Athlon processors for Socket 754.
