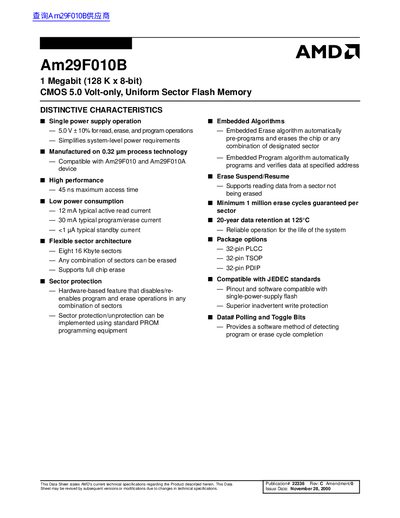

AMD Am29F010B 1 Megabit (128 K x 8-bit) CMOS 5.0 Volt-only Uniform Sector Flash Memory handbook
The Am29F010B is a 1‑Megabit (128 K × 8‑bit) CMOS flash memory from AMD that operates from a single 5 V supply and provides uniform 16 KB sectors. It offers fast access with a 45 ns maximum read time and low power consumption (12 mA active read, 30 mA program/erase, <1 µA standby).
The device includes embedded erase and program algorithms, sector protection, and guarantees at least 1 million erase cycles per sector with 20‑year data retention at 125 °C. It is offered in 32‑pin PLCC, TSOP and PDIP packages and conforms to JEDEC standards.
AMD Am29F010 specifications
| Memory size | 1 Megabit (128 K × 8‑bit) |
|---|---|
| Maximum access time | 45 ns |
| Active read current | 12 mA typical |
| Program/erase current | 30 mA typical |
| Standby current | <1 µA typical |
| Sector architecture | Eight 16 KB sectors, any combination erasable |
| Erase endurance | ≥ 1 million cycles per sector |
| Data retention | 20 years at 125 °C |
| Package options | 32‑pin PLCC, 32‑pin TSOP, 32‑pin PDIP |
Source: AMD Am29F010B 1 Megabit (128 K x 8-bit) CMOS 5.0 Volt-only Uniform Sector Flash Memory handbook
All AMD Am29F010 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the Am29F010B require?
It operates from a single 5.0 V supply (±5 % tolerance) for read, program and erase operations.
From: AMD Am29F010B 1 Megabit (128 K x 8-bit) CMOS 5.0 Volt-only Uniform Sector Flash Memory handbook
How many erase cycles are guaranteed for each sector?
Each sector is guaranteed to endure at least one million erase cycles.
From: AMD Am29F010B 1 Megabit (128 K x 8-bit) CMOS 5.0 Volt-only Uniform Sector Flash Memory handbook
What is the maximum access time for the Am29F010?
The device offers a 90 ns access time for the 90‑ns speed option and 120 ns for the 120‑ns option.
How many uniform sectors does the Am29F010 have?
It is organized into eight uniform sectors, each 16 KB in size.
