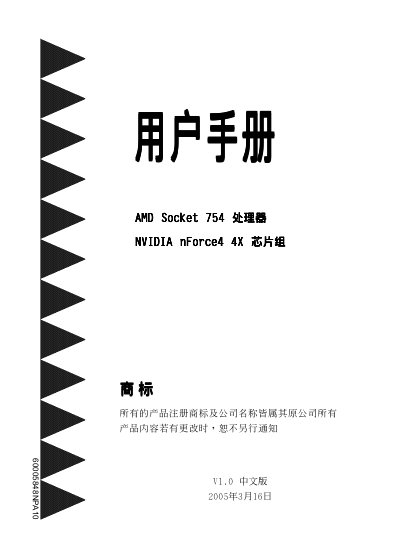

AMD Socket 754 NVIDIA nForce4 4X Motherboard User Manual
This manual provides detailed instructions for configuring an AMD Socket 754 motherboard equipped with the NVIDIA nForce4 4X chipset. It includes sections on BIOS setup, memory configuration, VGA BIOS settings, and power management.
Additional chapters cover RAID configuration, PCI‑Express slots, SATA, USB2.0, audio codecs, and networking interfaces. The document also explains how to use the integrated Realtek audio codecs and the VITESSE LAN PHY, as well as troubleshooting tips for common setup issues. This manual is written in Chinese.
AMD NFORCE4 specifications
| Socket type | 754‑pin |
|---|---|
| Supported memory speed | DDR‑266/333/400 |
| RAID modes | 0, 1, 0+1, JBOD |
| PCI‑Express slots | x1, x16 |
| PCI‑Express slots | x16 |
| Audio codec | Realtek ALC655 AC’97 |
| Audio codec | Realtek ALC850 AC’97 |
Source: AMD Socket 754 NVIDIA nForce4 4X Motherboard User Manual
All AMD NFORCE4 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What RAID configurations are supported by the nForce4 4X chipset?
The chipset supports RAID 0, RAID 1, RAID 0+1 and JBOD configurations.
From: AMD Socket 754 NVIDIA nForce4 4X Motherboard User Manual
What is the maximum supported memory speed?
The motherboard supports DDR memory at 266 MHz, 333 MHz, and 400 MHz.
From: AMD Socket 754 NVIDIA nForce4 4X Motherboard User Manual
How can I reset the BIOS settings?
Clear the CMOS using the jumper or by removing the battery to reset the BIOS to its default configuration.
From: Socket 754 AMD Athlon 64 / NVIDIA nForce4 SLI/4X Motherboard User Manual
How do I configure RAID on this motherboard?
Enter the RAID BIOS utility (accessible via the NVIDIA RAID BIOS) and follow the on‑screen prompts to set up the desired RAID mode.
From: Socket 754 AMD Athlon 64 / NVIDIA nForce4 SLI/4X Motherboard User Manual
