Key facts
- Brand
- AMD
- Model
- SB700
- Category
- Other device
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-05-02
Start here

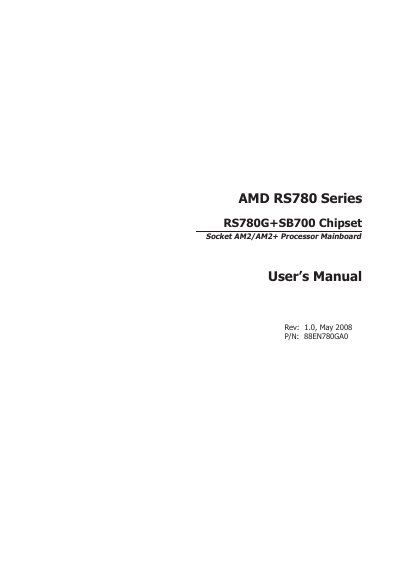

AMD RS780G+SB700 Chipset User Manual
This manual covers the AMD RS780G+SB700 chipset for Socket AM2/AM2+ mainboards. It includes a package checklist, detailed specifications, board layout diagrams, and instructions for connecting rear panel I/O devices.
The guide walks you through hardware setup (chassis selection, mounting, CPU and cooler installation, memory module installation), jumper and header configuration, BIOS setup utility, driver installation, and includes appendices with BIOS error codes and S/PDIF connection details. This manual is written in Chinese.
AMD SB700 specifications
| Controller model | AMD SB700 SATA RAID controller |
|---|---|
| Supported RAID levels | RAID 0, RAID 1, RAID 10, RAID Ready, JBOD |
| Supported browsers for RAIDXpert | IE 6.0, Mozilla Suite 1.7, Firefox 1.0, Netscape Navigator 7.1 |
| RAIDXpert components | RAIDXpert software and private Java Runtime Environment |
All AMD SB700 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I set the SATA operation mode to RAID in the BIOS?
Enter BIOS Setup Utility → Advanced screen → IDE Configuration and set the “SATA Operation Mode” option to [RAID].
What browsers are required to run RAIDXpert?
RAIDXpert works with Internet Explorer 6.0, Mozilla Suite 1.7, Mozilla Firefox 1.0, or Netscape Navigator 7.1.
What CPUs are compatible with the AMD RS780G+SB700 motherboard?
It supports AMD Socket AM2+ and AM2 processors, including Phenom, Athlon 64 FX, Athlon 64 X2 Dual Core, Athlon 64, and Sempron CPUs.
How many SATA ports does the board provide?
The board provides four SATA ports with a maximum speed of up to 3 GB/s and supports RAID 0, RAID 1, and RAID 10.
