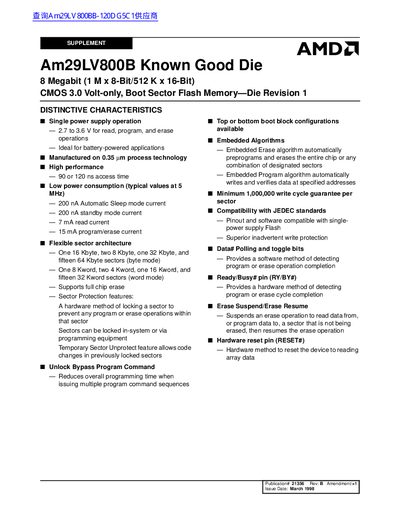

AMD Am29LV800B Known Good Die Datasheet Supplement
The Am29LV800B is an 8 Mbit, 3.0 volt-only Flash memory available as a die in Known Good Die (KGD) form. It features a flexible sector architecture with support for byte and word modes, embedded algorithms for programming and erasing, and hardware sector protection to prevent unauthorized writes.
The document provides technical details including electrical specifications, pin descriptions, ordering information for various package types (Waffle Pack, Gel-Pak, Tape and Reel), and an overview of the AMD KGD product test flow which ensures functionality without requiring burn-in.
AMD AM29LV800B specifications
| Memory Capacity | 8 Megabit (1 M x 8-Bit/524,288 words) |
|---|---|
| Voltage Operation | 3.0 Volt-only |
| Access Time (90ns) | 90 ns |
| Standby Current | 200 nA |
| Read Current (typical) | 7 mA |
| Program/Erase Current | 15 mA |
| Write Cycle Guarantee | 1,000,000 cycles per sector |
