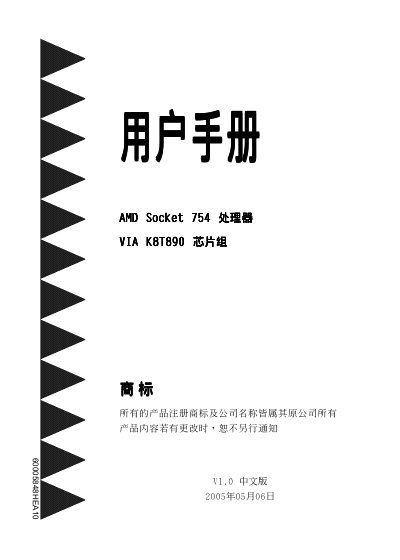

VIA K8T890 AMD Socket 754 User Manual
The VIA K8T890 User Manual provides step‑by‑step instructions for configuring the BIOS of AMD Socket 754 motherboards. It covers essential settings such as memory type, VGA BIOS, CMOS options, and power management features.
The document also details advanced features like RAID configuration, PCI‑E and AGP slot usage, USB 2.0 support, and audio codec settings. Each section includes the required key combinations and parameter values needed to optimize system performance. This manual is written in Chinese.
AMD K8T890 specifications
| CPU Socket | Socket 939 |
|---|---|
| Chipset | VIA K8T890 + VT8237R |
| Maximum Memory | 4 GB |
| Expansion Slots | 3 PCI, 1 PCI‑E ×16, 2 PCI‑E ×1 |
| USB Ports | 8 USB 2.0 (4 on back panel) |
| IDE Ports | 2 IDE ports (supports 4 devices) |
| IDE Transfer Mode | UDMA‑33, ATA‑66/100/133 |
| SATA Ports | 2 SATA (150 MB/s, RAID 0/1/JBOD) |
| Form Factor | ATX, 30.5 × 24.5 cm |
All AMD K8T890 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I enter the VIA RAID BIOS configuration?
Press the <Tab> key during boot to open the VIA RAID BIOS setup program.
What should I do if the BIOS is inserted incorrectly?
Re‑check the BIOS orientation and reinstall it correctly.
Which AMD processors are compatible with this motherboard?
The board supports Socket‑AM2 (940‑pin) AMD Athlon‑X2, Athlon‑64 and Sempron processors.
How many USB 2.0 ports does the motherboard provide?
It provides eight USB 2.0 ports, with four connectors mounted directly on the board.
What memory types can be used with the K8T890 chipset?
The chipset supports DDR‑266, DDR‑333 and DDR‑400 memory up to 2 GB.
How do I enable RAID on an AMD Socket 754 board with the K8T890?
Enter the RAID BIOS section and select the desired RAID mode (RAID 0, RAID 1, or JBOD).
