Start here

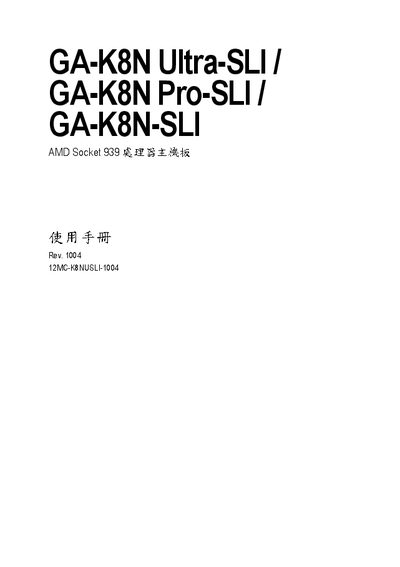

AMD Socket 939 CPU system board GA-K8N-SLI Manual
This manual provides safety and regulatory information for the Gigabyte GA‑K8N series motherboards, including CE marking, FCC compliance and declaration of conformity. It also lists the supported CPU socket (AMD Socket 939) and outlines the various motherboard revisions – Ultra‑SLI, Pro‑SLI and SLI.
The document details BIOS configuration options such as Standard CMOS Features, Advanced BIOS Features, Integrated Peripherals, Power Management, PCI configuration, system health monitoring and advanced tuning utilities (M.I.T.). Connector layouts, jumper settings and troubleshooting tips are also included.
AMD Socket 939 specifications
| CPU socket | Socket 939 |
|---|---|
| Chipset | NVIDIA nForce3 250 |
| Memory slots | 4 DDR slots, DDR‑266/333/400 |
| Maximum memory | 4 GB |
| BIOS | Plug & Play, ACPI v2.0 |
| LAN | Realtek RTL8201 10/100 Mbps |
| S‑ATA ports | 2 ports, up to 150 MB/s, RAID 0/1/JBOD |
| Audio codec | Realtek ALC655 AC’97, 6‑channel |
| Form factor | 30.5 × 24.5 cm, ATX |
All AMD Socket 939 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- AMD nForce3 250 Socket 939 Motherboard User Manual 62 p
- AMD Socket 939 Motherboard User Manual 72 p
- Asus AMD Socket 939 Motherboard User Manual 62 p
- AMD Socket 939 Motherboard User Manual 68 p
- AMD Socket 939 Athlon 64/X2 CPU motherboard user manual 66 p
- AMD Socket 939 CPU motherboard user manual(1) 60 p
- AMD Socket 939 CPU system board GA-K8N-SLI Manual 88 p
Questions answered in these manuals
What should I do if the BIOS is installed incorrectly?
Re‑check the BIOS orientation and reinstall it according to the troubleshooting guide.
How can I access the RAID BIOS configuration?
After powering on, press the F10 key to enter the RAID BIOS setup program.
Which RAID levels does the motherboard support?
It supports RAID 0, RAID 1 and RAID 10 on the two SATA ports.
What type of CPU socket does the board use?
It uses a 939‑pin socket compatible with AMD Athlon 64 processors.
What does error code C1h indicate?
It points to a possible BIOS insertion error or incorrect BIOS version.
How do I delete a RAID set?
Select the RAID set you want to remove and choose “Delete RAID Set,” then confirm with “Y.”
