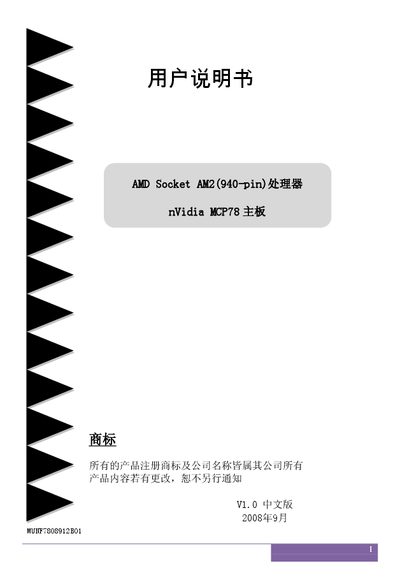

This is the user manual of the PNY MGA-7808912B01 motherboard, which covers the board's specifications, installation, and common BIOS settings
This manual provides detailed information about the Pan Zheng MUNF7808912B01 motherboard, including its accessories, hardware specifications, installation procedures, BIOS configuration, driver installation, and common troubleshooting.
It also contains instructions for BIOS updates, warranty terms, and a list of frequently asked questions to help users set up and maintain the system safely and efficiently. This manual is written in Chinese.
| CPU Socket | Socket AM2/AM2+ (940‑pin) |
|---|---|
| Chipset | NVIDIA MCP78 Series |
| Memory Slots | 4 x 240‑pin DDR2 DIMM slots |
| Maximum Memory | 16 GB DDR2 667/800/1066 MHz |
| PCI Slots | 2 x PCI (v2.3) slots |
| PCI‑Express Slot | 1 x PCI‑E x16 (PCI‑Express 2.0) |
| USB Ports | 10 x USB 2.0 (4 on rear panel) |
| SATA Ports | 6 x SATA II (300 MB/s) |
| Audio | Realtek ALC8XX/6XX 6‑ or 8‑channel HD audio |
The board supports AMD Athlon‑X2, Athlon‑64 and Sempron processors for Socket‑AM2, and AMD Phenom processors for Socket‑AM2+.
It provides a total of ten USB 2.0 ports, with four of them located on the rear I/O panel.
