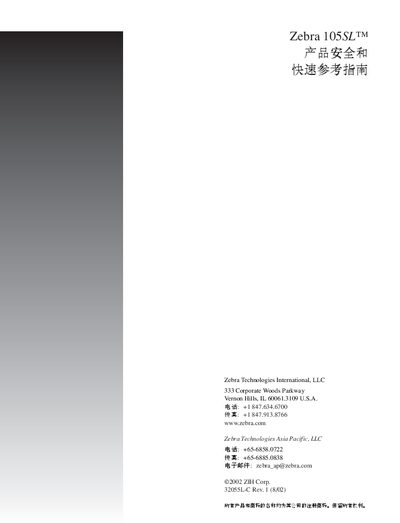

Zebra 105SL products securityAndquick User Guide
The Zebra 105S Quick Reference Guide provides essential information for installing and operating the printer, including safety warnings, power requirements, and environmental conditions. It also describes how to load media, replace ribbons, and perform basic printhead maintenance.
Additional sections cover troubleshooting tips, proper packaging for returns, and guidelines for using compatible accessories. The guide is intended for operators and service personnel who need concise, step‑by‑step instructions.
Zebra 105SL specifications
| Printhead resolution | 300 dpi (12 dots/mm) |
|---|---|
| Power input | 90–264 VAC, 48–62 Hz |
| Power consumption (printing) | 180 W |
| Power consumption (idle) | 19 W |
| Dimensions (H × W × D) | 15.5 in × 11.2 in × 18.9 in |
| Weight | 55 lb (25 kg) |
| Operating temperature (thermal transfer) | 40 °F to 104 °F (5 °C to 40 °C) |
| Storage temperature | -40 °F to 140 °F (-40 °C to 60 °C) |
All Zebra 105SL documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
How do I calibrate the Zebra 105 SL printer?
The guide includes a step‑by‑step calibration procedure in the "Calibrating the Printer" section.
What is the print resolution of the Zebra 105 SL?
The printhead provides a resolution of 300 dpi (12 dots per mm).
Which communication ports are available on the Zebra 105SL?
It provides an RS232 serial port and a USB interface.
What is the maximum print width of the Zebra 105SL?
The maximum printable width is 104 mm.
What are the power requirements for the Zebra 105S printer?
It operates on 90‑264 VAC at 48‑62 Hz and consumes between 19 W and 180 W.
Can the printhead ribbon be replaced by the user?
Some ribbon types can be replaced by the user, but others must be replaced by qualified service personnel.
