Key facts
- Brand
- Yamaha
- Model
- MX6
- Documents
- 2
- Languages
- ZH · EN
- Last added
- 2012-06-12
Start here

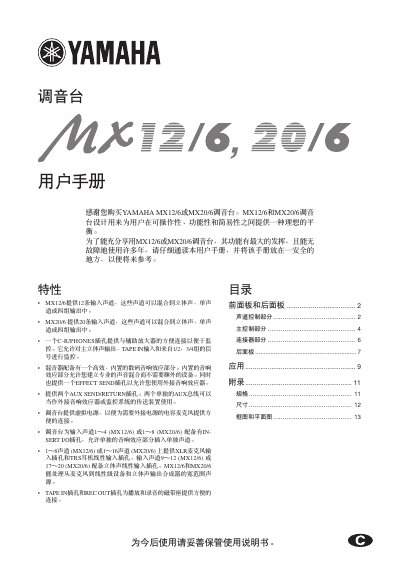

Yamaha MX12/6 and MX20/6 Mixing Console User Manual
User Manual 16 pages · 1.3 MB · ZH
This user manual is for the Yamaha MX12/6 and MX20/6 mixing consoles. The MX12/6 model provides 12 input channels, while the MX20/6 provides 20 input channels. Both models are designed to offer an ideal balance between operability, functionality, and simplicity for users. This manual is written in Chinese.
Read onlineYamaha MX6 specifications
| MX12/6 Input Channels | 12 input channels |
|---|---|
| MX20/6 Input Channels | 20 input channels |
| MX12/6 Stereo Channels | Channels 9-12 |
| MX20/6 Stereo Channels | Channels 17-20 |
| MX12/6 Insert Channels | Channels 1-4 |
| MX20/6 Stereo Line Inputs | Channels 17-20 |
| Graphic Equalizer Bands | 7 bands |
| Graphic Equalizer Frequency | 125, 250, 500, 1k, 2k, 4k and 8kHz |
All Yamaha MX6 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many bands does the built-in graphic equalizer have?
The built-in graphic equalizer has 7 bands.
What input channels are available on the MX12/6 and MX20/6 mixing consoles?
The MX12/6 provides 12 input channels, while the MX20/6 provides 20 input channels.
Can the mixing consoles be mixed into group outputs?
Yes, both models can mix signals into stereo, monaural, or to four group outputs.
Does the mixer include a built-in effects section?
Yes, the mixer is equipped with a highly efficient, built-in digital effects section.
