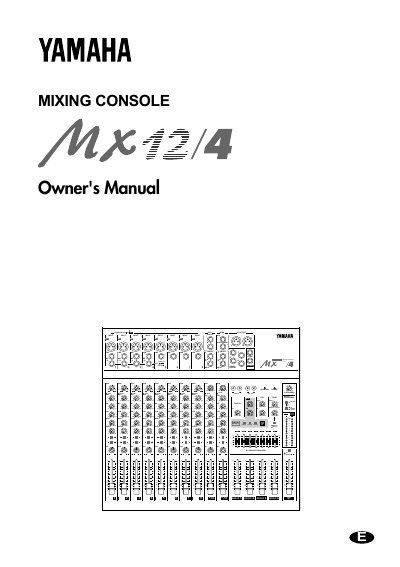

Yamaha MX12/4 Mixing Console Owner's Manual
The Yamaha MX12/4 is a 12-input, 4-group-out mixing console designed to provide an ideal balance of operability, functionality, and simplicity. It includes built-in digital effects, phantom power for condenser microphones, and various input options including XLR mic inputs and stereo line inputs.
The manual details the front panel controls such as channel gain, equalization (High/Mid/Low), pan/balance, and faders. It also explains the master control section, which includes a stereo graphic equalizer, group select switches, and output jacks for monitoring and recording.
Yamaha MX4 specifications
| Input channels | 12 |
|---|---|
| Group outputs | 4 |
| Phantom power | Provided for condenser microphones |
| Digital effect unit | Built‑in |
| EQ high frequency | 12 kHz (shelving) |
| EQ mid frequency | 2.5 kHz (peaking) |
| EQ low frequency | 80 Hz (shelving) |
| Graphic EQ boost/cut | ±12 dB at 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz |
| Input impedance | 600 Ω |
| Output impedance | 10 kΩ |
All Yamaha MX4 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the input specifications for channels 1-8?
Channels 1-8 provide both XLR type mic inputs and TRS phone line inputs.
What are the input specifications for channels 9-12?
Channels 9-12 provide stereo line inputs.
What safety precautions should be taken before using the Yamaha MX12/4?
Avoid excessive heat, humidity, dust and vibration, always power off before making connections, and do not open the case or attempt repairs.
How many input channels does the MX12/4 have?
The MX12/4 provides 12 input channels.
