mLAN16E2 is a Yamaha expansion card based on mLAN technology, which can be connected to Yamaha MOTIF XS music synthesizers and other mLAN16E2 compatible devices. Through P2P connection established by IEEE1394 cable to connect to the computer, it can simultaneously transmit audio data in all channels and MIDI data in all ports between the device with mLAN16E2 and the computer.
The Yamaha mLAN16E2 is an expansion card based on mLAN technology designed to add two mLAN interfaces compatible with Yamaha MOTIF XS music synthesizers. It allows simultaneous transmission of all-channel audio data via IEEE 1394 (FireWire/iLINK) cables and MIDI data through all ports between the device and a computer.

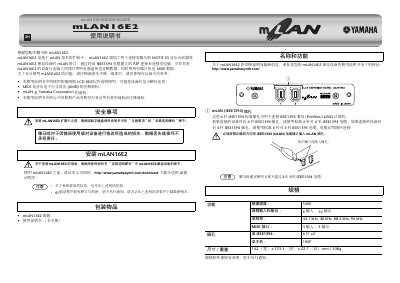

To utilize the full functionality of the board, users must download appropriate AI drivers from the official website before use. The manual covers safety precautions, installation procedures referencing compatible equipment guides, and specific usage instructions for connecting IEEE 1394 cables. This manual is written in Chinese.
| Data Speed | 5400 |
|---|---|
| Audio Input and Output | 6 input, 16 output |
| Sampling Rate | 44.1 kHz 48 kHz 88.2 kHz 96 kHz |
| MIDI Interface | 3 input, 3 output |
| IEEE1394 Ports | 6-pin x2 |
| Host Port | 100P |
| Dimensions (WxDxH) | 142 x 123.3 x 22.7 mm |
Yamaha recommends using an IEEE 1394 cable with a length not exceeding 4.5 meters.
Drivers must be downloaded from the company website: http://www.yamahasynth.com/download/.
