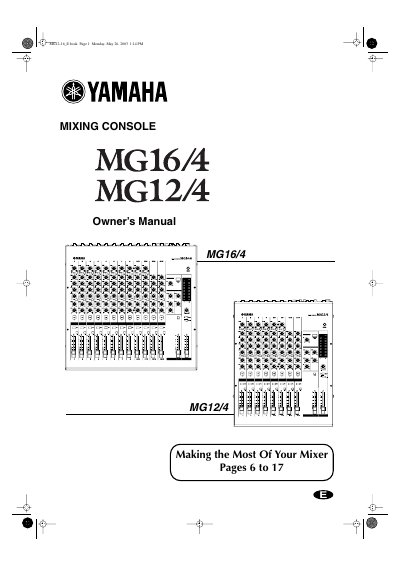

Yamaha MG16/4 MG12/4 Mixing Console User Manual

About this manual

This manual covers safety precautions, proper installation, and basic operation of the MG16/4 and MG12/4 mixing consoles. It explains power‑up procedures, connector types, and how to avoid common problems such as noise and electrical hazards.

The guide also details the mixer’s features, including input channel counts, phantom power, and balanced/unbalanced signal handling, and provides specifications, dimensional diagrams, and block diagrams for reference.

What's inside

• Precautions
• Installation
• Before Turning on the Mixer
• Making the Most of Your Mixer
• Connector Types
• Balanced vs Unbalanced Signals
• Specifications
• Dimensional Diagrams
• Block Diagram

Specifications

Frequently asked questions

Which power adaptor should I use with the mixer?

Use only the PA-20 adaptor that is included with the mixer.

What connector types are available on the MG16/4/MG12/4?

The mixer provides XLR, TRS phone, and RCA connectors for inputs and outputs.

When should I use balanced lines?

Balanced lines are best for long cable runs and microphone connections to reduce noise.

How do I safely power on the mixer?

Set the power switch to STANDBY, connect the PA-20 adaptor to the AC ADAPTOR IN jack, then turn the switch to ON.
