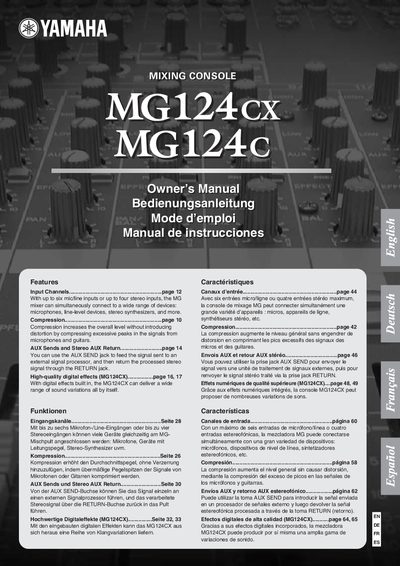

Yamaha MG124CX/MG124C Mixing Console Owner's Manual
This manual provides all the information needed to install, operate, and maintain the Yamaha MG124CX and MG124C mixing consoles. It includes safety notices, power‑supply requirements, wiring diagrams, and step‑by‑step instructions for connecting microphones, instruments, speakers, and external processors.
The guide also explains the console’s features such as up to six mic/line inputs, four stereo inputs, built‑in digital effects on the MG124CX model, and the use of AUX SEND/RETURN, compression, and equalizer controls. Troubleshooting tips, specifications, and a list of accessories are provided at the end of the document.
Yamaha MG124C specifications
| Maximum input channels | Up to 6 mic/line inputs or up to 4 stereo inputs |
|---|---|
| Temperature rise on power‑on | 15 °C to 20 °C |
| Panel temperature at high ambient | May exceed 50 °C when ambient >30 °C |
| Digital effects | Built‑in digital effects (MG124CX only) |
All Yamaha MG124C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Does the manual apply to both MG124CX and MG124C models?
Yes, the manual covers both models; the MG124CX includes built‑in digital effects while the MG124C does not.
