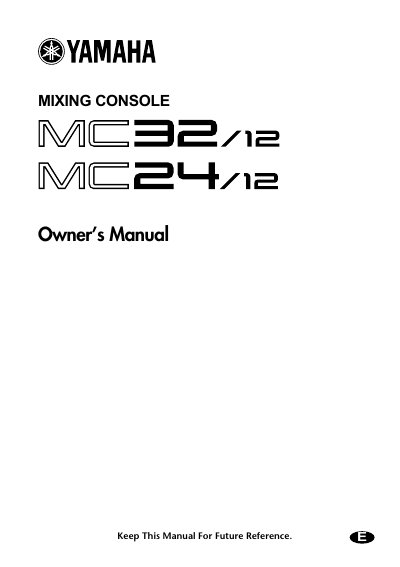

Yamaha MC32/12 MC24/12 Mixing Console Owner's Manual
The Yamaha MC32/12 and MC24/12 mixing consoles are designed for sound reinforcement and facility acoustics applications. The MC32/12 model provides 28 monaural and 2 stereo input modules, while the MC24/12 provides 20 monaural and 2 stereo input modules. Both models feature a master section in the center area for easy operation of MIX buses 1-10, matrix outputs, and other functions.
Each monaural input channel includes a 26 dB pad, high pass filter, phase switch, 4-band equalizer with variable center frequencies for HI-MID and LO-MID, and a 100 mm full-stroke fader. The consoles support various routing options, including Variable/Fix select for MIX buses 1-4, independent matrixes, and talkback signals sent to multiple buses.
Yamaha MC24 specifications
| Monaural input channels (MC32/12) | 28 |
|---|---|
| Monaural input channels (MC24/12) | 20 |
| Stereo input channels | 2 |
| Pad attenuation | 26 dB |
| Fader length | 100 mm |
| Stereo AUX returns | 4 |
| MIX buses | 10 |
| Matrix outputs | 2 |
| High pass filter cutoff | 80 Hz |
| EQ boost/cut range | +15 dB |
Source: Yamaha MC32/12 MC24/12 Mixing Console Owner's Manual
All Yamaha MC24 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the difference between the MC32/12 and MC24/12 models?
The MC32/12 provides 28 monaural and 2 stereo input modules, while the MC24/12 provides 20 monaural and 2 stereo input modules.
How do I turn on the high pass filter on a monaural input channel?
Press down the High pass filter switch to turn the high pass filter on, which cuts frequencies below 80 Hz.
