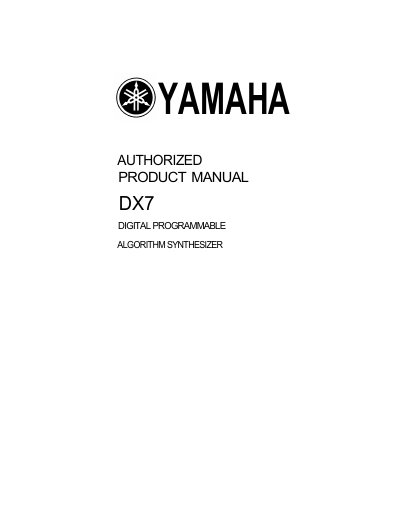

Yamaha DX7 Operation Manual
This manual covers the Yamaha DX7 digital FM synthesizer, describing its unique FM synthesis technology, front‑panel layout, and the 16‑note polyphonic keyboard. It explains how to connect power, audio, foot controllers, MIDI, and optional cartridges, and offers safety precautions for handling, electromagnetic interference, and lightning storms.
The guide walks users through voice programming, editing, and storage using internal memory, ROM and RAM cartridges, as well as advanced features such as algorithms, envelopes, LFO modulation, and after‑touch. It also includes MIDI implementation details, troubleshooting tips, and a glossary of synthesizer terms.
