Start here

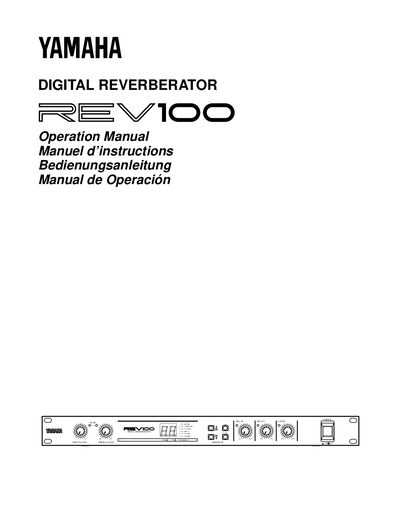

Yamaha REV100 Digital Reverberator Operation Manual
The Yamaha REV100 is a high-quality, inexpensive, and easy-to-use stereo Digital Reverberator designed for home recording or smaller sound reinforcement applications. It features two inputs and two outputs, offering true stereo processing along with delay-plus-reverb and modulation-plus-reverb effects.
The unit includes rotary controls for setting levels and editing effect parameters such as Delay, Decay, and Level. A 7-segment LED display indicates the current program or parameter values, while a MIDI IN connection allows for selecting effects programs using MIDI messages.
Yamaha REV100 specifications
| Inputs/Outputs | two inputs and two outputs |
|---|---|
| Sampling Rate | 44.1 kHz |
| Converters | 16-bit A/D and D/A converters |
| Program Count | 99 programs |
All Yamaha REV100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the main uses of the REV100?
It can be used for home recording or smaller sound reinforcement applications.
How do I change programs on the unit?
Select different programs by pressing the Y and /\ keys.
How do I select a different program?
Use the up/down arrow keys to display the desired program number on the seven‑segment display.
How can I edit the parameters of a program?
Turn the EDIT knob to adjust DELAY, DECAY, or LEVEL for the currently selected effect.
