Start here

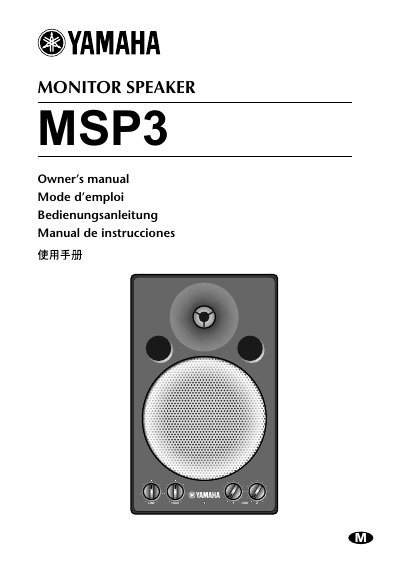

Yamaha MSP3 Monitor Speaker Owner's Manual
This document is the Owner's Manual for the Yamaha MSP3 monitor speaker system. It provides instructions on safety precautions, connecting cables to LINE 1 (RCA) and LINE 2 (XLR/Phone) inputs, and operating the front panel controls including LOW and HIGH tone adjustments. The manual also details how to use the rear POWER switch and power indicator.
Read onlineYamaha MSP3 specifications
| Crossover Frequency | 4kHz |
|---|---|
| Frequency Range | 65 Hz—22 kHz |
| Maximum Output Power | 20W |
| Dimensions (W x H x D) | 144 x 236 x 167 mm |
| Speaker Unit LF | 10 cm cone (4Q, magnetic shielded) |
| Speaker Unit HF | 2.2 cm dome (4, magnetic shielded) |
All Yamaha MSP3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the crossover frequency of the MSP3?
The crossover frequency for this speaker system is 4kHz.
How do I adjust the bass and treble on the front panel?
Use the LOW control knob to adjust bass from -3dB to +3dB at 100Hz, and the HIGH control knob for treble from -3dB to +3dB at 10kHz.
What safety precautions should be taken when using the Yamaha MSP3 loudspeaker?
Do not let water enter the unit or expose it to moisture, keep it away from fire sources, and avoid placing heavy objects on the power cord to prevent fire or electric shock.
How should the power cord be handled to avoid fire or electric shock?
Never pull the cord, do not use wet hands when plugging or unplugging, and always grasp the plug itself when disconnecting.
