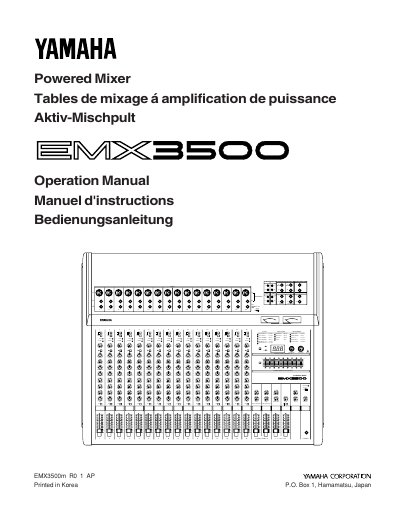

Yamaha EMX3500 Powered Mixer Operation Manual
This manual provides operating instructions for the Yamaha EMX3500 Powered Mixer, an ideal choice for medium-scale PA and sound reinforcement applications. The device features a high-performance stereo power amplifier delivering 350 watts per channel into 4-ohm loads, available in 12- and 16-channel models. Each input channel includes balanced XLR or TRS phone jack inputs, a 20-dB pad switch, input gain control, and a three-band equalizer with variable mid-range frequency. The mixer also incorporates dual EFFECT controls, a MONITOR control, and a PAN control for routing signals across the master stereo bus.
Read onlineYamaha MX-35 specifications
| Maximum Power Output | 50 W |
|---|---|
| Phantom Power | +48 V |
| High‑Pass Filter | 80 Hz, -12 dB/octave |
| Gain Range | -60 dB to -16 dB |
All Yamaha MX-35 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum power output of the EMX3500 mixer?
The mixer can deliver up to 50 W of output power.
How do you enable phantom power for microphones?
Turn on the +48 V phantom power switch on the mixer.
What are the available channel models for the EMX3500?
The EMX3500 is available in 12- and 16-channel models.
How does the PAD switch function?
The PAD switch attenuates the signal applied to the channel by 20 dB prior to the head amplifier and input gain control.
How do I switch between two-channel and four-channel operation?
Set the 2-4 CHANNEL selector on the rear panel to the '2CH' position for two-channel operation or the '4CH' position for four-channel operation.
What is the maximum power rating for components connected to the unswitched AC outlet?
The component connected to the unswitched AC outlet should have a rating of no more than 200W.
