Yamaha P-70 Manuals

Key facts

Brand: Yamaha
Model: P-70
Category: Other
Documents: 8
Languages: DE · EN · JA
Last added: 2012-07-02

Start here

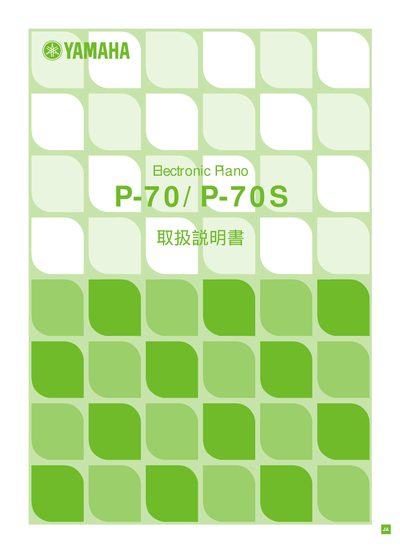

Yamaha P-70/P-70S User Manual

User Manual 32 pages · 923 KB · JA

This manual begins with safety precautions, warning symbols and proper handling to prevent injury or damage. It explains power requirements, the required PA-5D power adapter, and how to safely connect and disconnect cables.

The guide then covers basic setup, key‑touch features, sound selection, MIDI and headphone connections, as well as routine maintenance, warranty terms and service contact information. This manual is written in Japanese.

Read online

Yamaha P-70 specifications

XP70 Pad Size	214 x 68 (H) mm
XP70 Weight	1.2 kg
XP70 Sensor System	Trigger sensor (piezo) x 1
XP80 Pad Size	260 x 77 (H) mm
XP80 Weight	1.6 kg
XP80 Sensor System	Trigger sensor (piezo) x 1, rim switch (2 zones) x 1

Source: Yamaha XP70/XP80 Electronic Drum Pad Owner's Manual

All Yamaha P-70 documents by type

User Manual 6

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Other documents 2

Questions answered in these manuals

What is the difference between the XP70 and XP80 sensors?

The XP70 has a trigger sensor (piezo), while the XP80 includes an additional rim switch with 2 zones.

From: Yamaha XP70/XP80 Electronic Drum Pad Owner's Manual

What type of cable is used to connect the pad?

A supplied stereo phone cable connects the output jack on the XP series pad to the input jack on the DTX Series drum Trigger Module.

From: Yamaha XP70/XP80 Electronic Drum Pad Owner's Manual

What is the minimum required space between the device and surrounding walls for adequate ventilation?

You must leave at least 5cm of space on the sides, 10cm behind the unit, and 10cm above it.

From: YAMAHA XP7000/5000/3500/2500/1000 user manual

What type of cables must be used to connect speakers to the speaker jacks?

You must use only speaker cables; using other types may result in fire.
