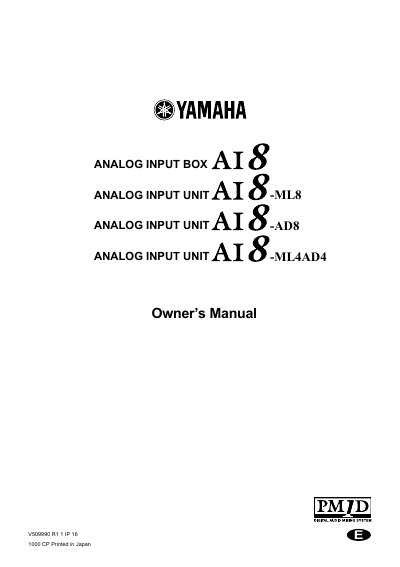

YAMAHA ANALOG INPUT BOX AI8 ANALOG INPUT UNIT AI8 -ML8 ANALOG INPUT UNIT AI8 -AD8 ANALOG INPUT UNIT AI8 -AD8 owner's Manual
The Yamaha AI8 is an analog input box specifically designed for the Yamaha PM1D digital audio mixing system. It serves as a bridge to connect analog signals to the DSP unit (DSP1D/DSP1D-EX) engine, which is controlled via the CS1D control surface. The unit can accommodate up to ten AI8 boxes connected to each DSP engine and supports various installable cards, including LMY2-ML for MIC/LINE inputs and LMY4-AD for AD inputs.
The manual provides detailed instructions on front panel controls such as the INPUT UNIT ID indicator, PHANTOM MASTER switch, POWER ON/OFF switch, and CONTROL PORT switch. It also explains rear panel connectivity options, including OUTPUT connectors A, B, C for multi-channel digital audio signals, and WORD CLOCK IN/OUT jacks for synchronization. Important safety precautions regarding rack mounting, ventilation, and power connections are included.
Yamaha AD8 specifications
| Compatible System | Yamaha PM1D digital audio mixing system |
|---|---|
| Max Units per DSP Engine | Up to ten AI8s can be connected to each DSP1D/DSP1D-EX. |
| Max Cards per Unit | Up to eight cards can be installed. |
| Power Cord Wire Colors (UK) | Green-and-yellow: Earth, Blue: Neutral, Brown: Live |
All Yamaha AD8 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What does the INPUT UNIT ID indicator display?
It displays the ID number of the INPUT connector of the DSP unit connected to the AI8, or shows error indications if a connection issue occurs.
What is the function of the CONTROL PORT switch?
It allows you to select a port (OUTPUT A, B, or C) used to control the AI8 via the DSP unit for switching channels or phantom power.
How many AI8 units can be connected to each DSP1D/DSP1D-EX?
Up to ten AI8s can be connected to each DSP1D/DSP1D-EX.
What is the function of the PHANTOM MASTER switch?
It turns phantom power on and off for all headphone amplifiers on input connectors equipped with the LMY2-ML analog input card.
