Key facts
- Brand
- Yamaha
- Model
- A10
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-06-12
Start here

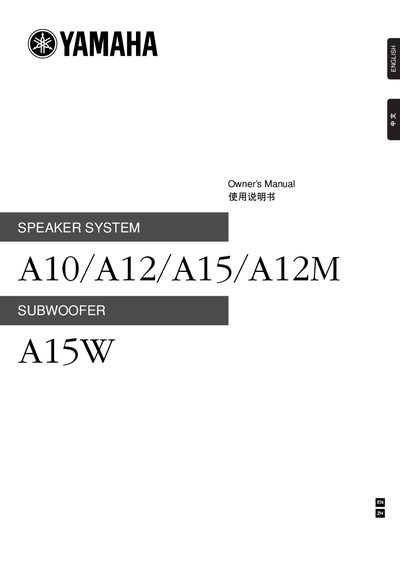

Yamaha A10/A12/A15/A12M/A15W Speaker System Owner's Manual
Thank you for choosing this YAMAHA speaker system. In order to take maximum advantage of the speaker's features and ensure maximum performance and longevity, please read this manual carefully before using the speaker system.
The document covers precautions regarding electrical shock, physical injury, and device damage. It details how to properly connect speakers using phone plugs or Neutrik NL4FC plugs, including wiring diagrams for both connection types.
Yamaha A10 specifications
| Model A10 Type | 2 way Bass reflex |
|---|---|
| Nominal Impedance | 8Q |
| Sensitivity A10/A12M | 96 dB SPL (1 W, 1 m) |
| Input Connectors A15W | 1/4" phone jack x 2, Neutrik SPEAKON NL4MP x 2 |
| Socket Mount Diameter | 35mm (1 - 3/8") |
Source: Yamaha A10/A12/A15/A12M/A15W Speaker System Owner's Manual
All Yamaha A10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of plugs should be used for Neutrik connectors?
Use only Neutrik NL4FC plugs for connecting Speakon connectors.
From: Yamaha A10/A12/A15/A12M/A15W Speaker System Owner's Manual
What is the recommended power amplifier turn-on sequence?
Always turn on the power amplifier LAST to avoid speaker damage.
From: Yamaha A10/A12/A15/A12M/A15W Speaker System Owner's Manual
