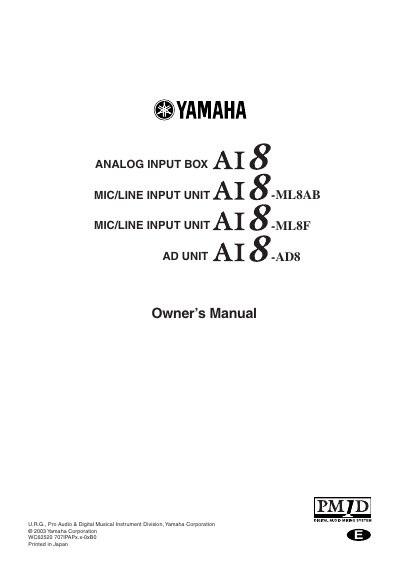

YAMAHA ANALOG INPUT BOX AI8 MIC/LINE INPUT UNIT ANALOG INPUT BOX AI8 -ML8AB MIC/LINE INPUT UNIT AI8 -ML8F AD UNIT AI8 -AD8 owner's Manual

This document is the user manual of Yamaha ML8AB and ML8F

Brand: Yamaha
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 181 KB
Published: 12 June, 2012
Updated: 30 September, 2023
Models: AI8, AD8
MD5 checksum: 471824A03FBB54BE0B54F9F1B6E88DB0
PDF: YAMAHA ANALOG INPUT BOX AI8 MIC/LINE INPUT UNIT ANALOG INPUT BOX AI8 -ML8AB MIC/LINE INPUT UNIT AI8 -ML8F AD UNIT AI8 -AD8 owner's Manual PDF

About this manual

The Yamaha AI8 is an analog input box specifically designed for the Yamaha PM1D digital audio mixing system. It serves as a bridge to input signals into the DSP unit engine, controlled via the CS1D control surface. The unit supports various expandable cards, including MIC/LINE inputs and AD converters.

What's inside

Precautions
FCC Information
Rack Mounting Caution
Front Panel Controls
Rear Panel Connectors
INPUT UNIT ID Indicator
PHANTOM MASTER Switch
POWER ON/OFF Switch
CONTROL PORT Switch
WORD CLOCK Connections

Specifications

Compatible System	Yamaha PM1D digital audio mixing system
Max Units per DSP Engine	Up to ten AI8s can be connected to each DSP1D/DSP1D-EX.
Max Cards per Unit	Up to eight cards can be installed.
Power Cord Wire Colors (UK)	Green-and-yellow: Earth, Blue: Neutral, Brown: Live

Frequently asked questions

What does the INPUT UNIT ID indicator display?

It displays the ID number of the INPUT connector of the DSP unit connected to the AI8, or shows error indications if a connection issue occurs.

What is the function of the CONTROL PORT switch?

It allows you to select a port (OUTPUT A, B, or C) used to control the AI8 via the DSP unit for switching channels or phantom power.

Download PDF (181 KB)
