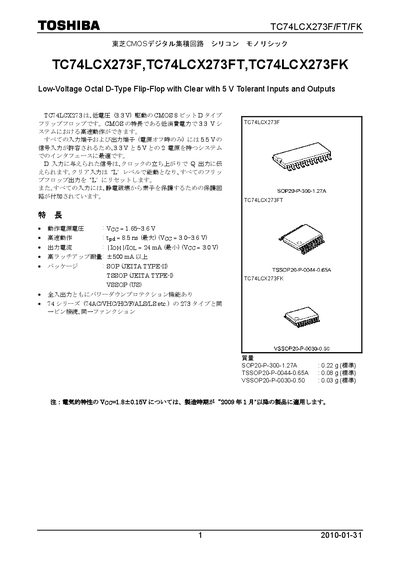

TOSHIBA TC74LCX273F TC74LCX273FT TC74LCX273F Manual
The TC74LCX273F/FT/FK is a low‑voltage octal D‑type flip‑flop with clear, designed for 5 V tolerant inputs and outputs. It operates from 1.65 V to 3.6 V supply and supports both 3.3 V and 5 V system interfaces.
The document provides absolute maximum ratings, detailed DC and AC electrical characteristics, pin‑connection diagrams, truth tables, and mechanical drawings for three package types (SOP20, TSSOP20, VSSOP20). It also includes handling guidelines and reliability notes for designers. This manual is written in Japanese.
Toshiba TC74LCX273F specifications
| Supply voltage (VCC) | 1.65 V – 3.6 V |
|---|---|
| Input voltage (VN) | 0 V – 5.5 V |
| Propagation delay (tpd) | 8.5 ns max |
| Output low‑level current (IOL) | 24 mA min |
| Package options | SOP20, TSSOP20, VSSOP20 |
| Mass (SOP20) | 0.22 g |
| Maximum clock frequency | 150 MHz |
