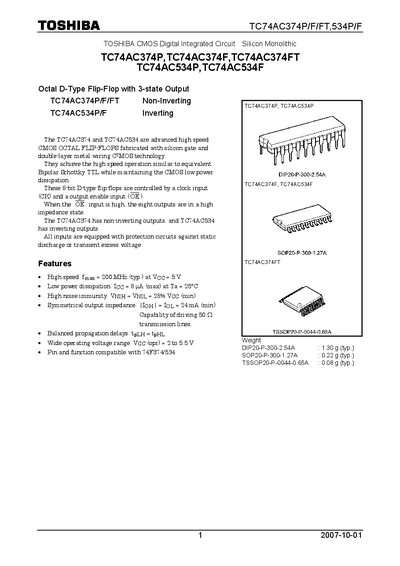

TOSHIBA TC74AC374P TC74AC374F TC74AC374FT TC74AC534P TC74AC534F Manual
The TC74AC374 and TC74AC534 are high‑speed CMOS octal D‑type flip‑flops with non‑inverting (TC74AC374) and inverting (TC74AC534) outputs. They feature a typical maximum operating frequency of 200 MHz, low static power dissipation (8 pA), and robust output drive capability (24 mA). The devices are supplied in DIP20, SOP20, and TSSOP20 packages and are compatible with the 74F374/534 pinout.
The document provides detailed pin assignments, electrical characteristics, absolute maximum ratings, timing requirements, and package dimensions. It also includes usage restrictions, emphasizing that the product is intended for general electronics applications and not for safety‑critical or high‑reliability systems such as aerospace or medical equipment.
Toshiba TC74AC374P specifications
| Maximum operating frequency | 200 MHz (typ.) |
|---|---|
| Supply voltage range | 2.0 V to 5.5 V |
| Quiescent current | 8 pA (max) |
| Output drive current | 24 mA (min) |
| Power dissipation (DIP) | 500 mW |
| Weight (DIP package) | 1.30 g (typ.) |
