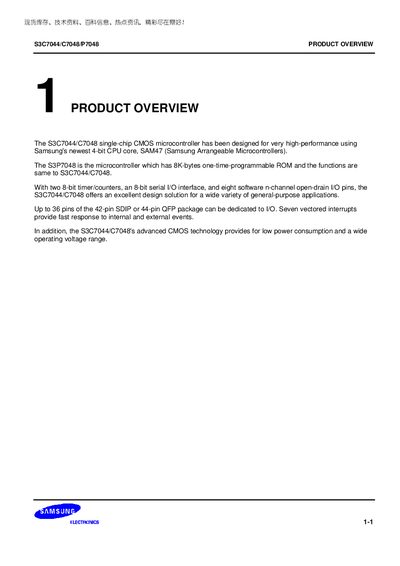

Samsung S3C7044/C7048/P7048 Handbook
This handbook describes the Samsung S3C7044, S3C7048 and S3C7048P single‑chip CMOS microcontrollers. It outlines the core SAM47 CPU, memory organization, I/O capabilities, power‑down modes, and peripheral functions such as timers, serial I/O, and interrupt handling. The document includes block diagrams, pin‑assignment tables, and programming guidelines.
Key sections cover the CPU registers, program and data memory structures, clock circuitry, power‑down operation, and detailed specifications like operating voltage, temperature range, and package options. The material is intended for engineers designing with these microcontrollers and for programmers needing register‑level details.
Samsung P7048 specifications
| ROM size | 4096 × 8‑bit (S3C7044) / 8192 × 8‑bit (S3C7048) |
|---|---|
| RAM size | 512 × 4‑bit |
| Operating voltage | 1.8 V – 5.5 V (Main) / 2.0 V – 5.5 V (OTP) |
| Operating temperature | -40 °C to 85 °C |
| Package types | 42‑pin SDIP, 44‑pin QFP |
All Samsung P7048 documents by type
Instruction set, parameters and examples for configuring or programming the device.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU core is used in the S3C7044/C7048 microcontrollers?
They use Samsung's SAM47 4‑bit CPU core.
What are the operating voltage ranges for the microcontroller?
The main supply voltage is 1.8 V to 5.5 V, and the OTP programming voltage is 2.0 V to 5.5 V.
What is the operating voltage range of the S3C7044/C7048 microcontrollers?
The main supply voltage ranges from 1.8 V to 5.5 V, and the OTP supply ranges from 2.0 V to 5.5 V.
How many I/O pins are available on the device?
The microcontroller provides 36 I/O pins: 4 input‑only, 24 configurable, and 8 software n‑channel open‑drain pins.
