LD G5AP, LT G5AP is a high-power TOPLED Plus enhanced optical power LED (ThinGaN) from Philips, which adopts a white P-LCC-4 package, colorless clear silicone resin, clear silicone lens, and can emit 457nm (deep blue) and 527nm (true green) two wavelengths, with optical flux of 36% (deep blue) and 70 lm/W (true green).

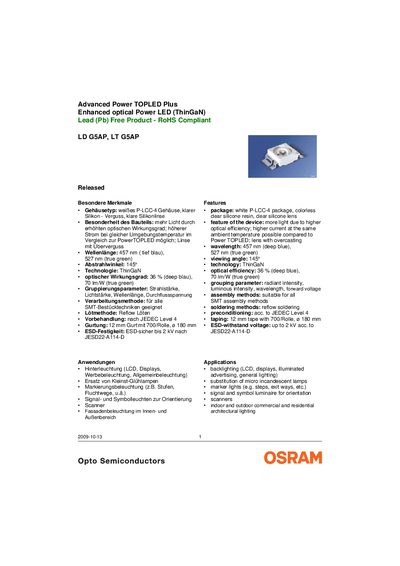

This datasheet describes the OSRAM LD G5AP (deep‑blue) and LT G5AP (true‑green) thin‑GaN LEDs. It lists key features such as high optical efficiency, a 145° viewing angle, and suitability for SMT assembly. Applications include backlighting, marker lights, signal and symbol illumination, and architectural lighting.
Technical data cover wavelength, forward voltage, current limits, temperature ranges, and packaging. Ordering information specifies brightness, wavelength and forward‑voltage groups, while revision history and packing notes address handling and regulatory compliance. This manual is written in German.
| Viewing angle | 145° |
|---|---|
| Optical efficiency (deep blue) | 36 % |
| Maximum forward current | 200 mA (at 25 °C) |
| Package type | white P‑LCC‑4 package, clear silicone lens |
| ESD withstand voltage | up to 2 kV |
Both the LD G5AP and LT G5AP LEDs have a viewing angle of 145°.
The maximum forward current is 200 mA at 25 °C.
