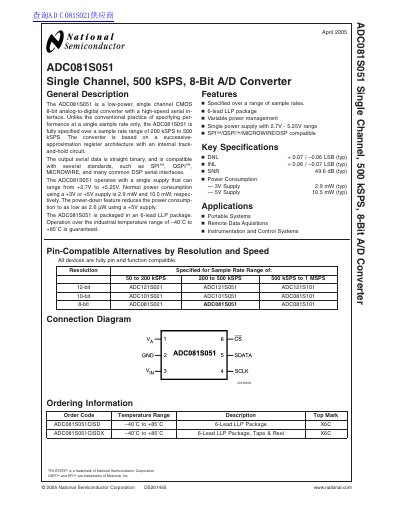

National Semiconductor ADC081S051 Manuals

The ADC081S051 is a low-power, single channel CMOS 8-bit analog-to-digital converter with a high-speed serial interface. It is fully specified over a sample rate range of 200 kSPS to 500 kSPS. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces. The ADC081S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 2.9 mW and 10.5 mW, respectively. The power-down feature reduces the power consumption to as low as 2.6 µW using a +5V supply. The ADC081S051 is packaged in an 6-lead LLP package. Operation over the industrial temperature range of −40˚C to +85˚C is guaranteed.

The ADC081S051 is a low-power, single channel CMOS 8-bit analog-to-digital converter with a high-speed serial interface. It is fully specified over a sample rate range of 200 ksps to 500 ksps and is based on a successive-approximation register architecture with an internal track-and-hold circuit. The output serial data is straight binary and compatible with several standards. The ADC081S051 operates with a single supply ranging from +2.7V to +5.25V. Power consumption ranges from 1.6 mW to 8.5 mW depending on the supply voltage. The power-down feature reduces power consumption to as low as 2.6 µW. The ADC081S051 is available in 6-lead LLP and SOT-23 packages and is suitable for operation over the industrial temperature range of -40°C to +85°C.
