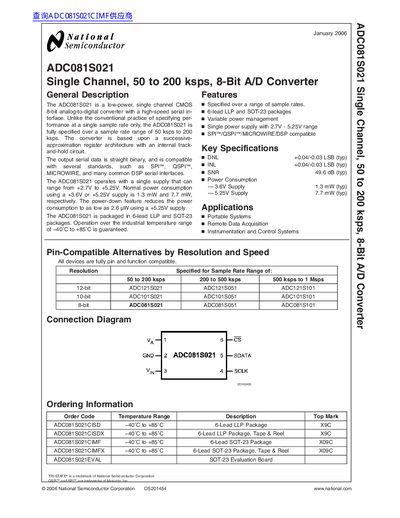

national semiconductor ADC081S021 Single Channel 50 to 200 ksps 8-Bit A/D Converter Manual
The ADC081S021 is an 8-bit successive-approximation register architecture A/D converter featuring an internal track-and-hold circuit. It supports sample rates ranging from 50 ksps to 200 ksps and offers compatibility with SPI, QSPI, MICROWIRE, and common DSP serial interfaces.
The device operates on a single power supply voltage between +2.7V and +5.25V. Power consumption is optimized for low-power applications, drawing as little as 1.3 mW at +3.6V in normal mode or reducing to 2.6 pW in power-down mode using a +5.25V supply. It is available in 6-lead LLP and SOT-23 packages with guaranteed operation over an industrial temperature range of -40°C to +85°C.
National Semiconductor ADC081S021 specifications
| Resolution | 8 Bits |
|---|---|
| Sample Rate Range | 50 ksps to 200 ksps |
| Supply Voltage Range | +2.7V to +5.25V |
| Operating Temperature Range | -40°C to +85°C |
Source: national semiconductor ADC081S021 Single Channel 50 to 200 ksps 8-Bit A/D Converter Manual
All National Semiconductor ADC081S021 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available packages for this converter?
The ADC081S021 is packaged in 6-lead LLP and SOT-23 packages.
From: national semiconductor ADC081S021 Single Channel 50 to 200 ksps 8-Bit A/D Converter Manual
Is the output data compatible with standard interfaces?
Yes, the straight binary output is compatible with SPI, QSPI, MICROWIRE, and many common DSP serial interfaces.
From: national semiconductor ADC081S021 Single Channel 50 to 200 ksps 8-Bit A/D Converter Manual
What supply voltage range does the ADC081S021 support?
It operates from a single supply voltage of 2.7 V to 5.25 V.
From: NATIONAL SEMICONDUCTOR - ADC081S021 Single Channel 50 to 200 ksps 8-Bit A/D Converter handbook
Which package options are available for this converter?
The device is available in 6‑lead LLP and SOT‑23 packages.
From: NATIONAL SEMICONDUCTOR - ADC081S021 Single Channel 50 to 200 ksps 8-Bit A/D Converter handbook
